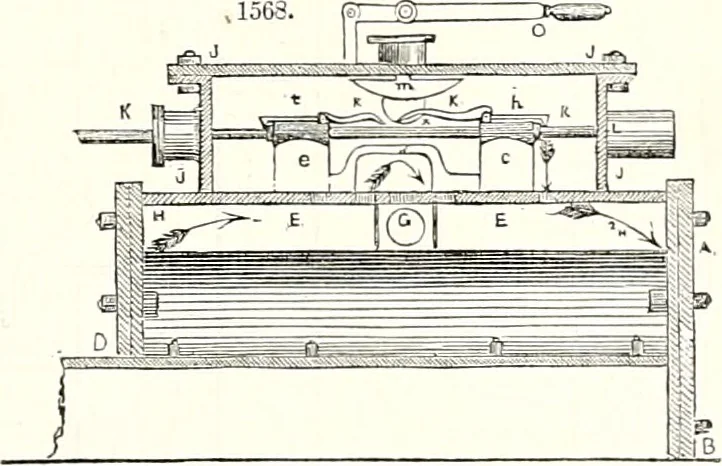

570. A is the rock-shaft, B the lifting rods, and G the exhaust-valve lifter, as usually arranged and worked. D is the steam-valve. E the valve stems. F is a piece attached to the valve stem by means ofwhich it rests on the toe G. This toe G is attached to the shaft H. On the same shaft H is the… … iOi ENGINE, VARIETIES OF THE STEAM.
