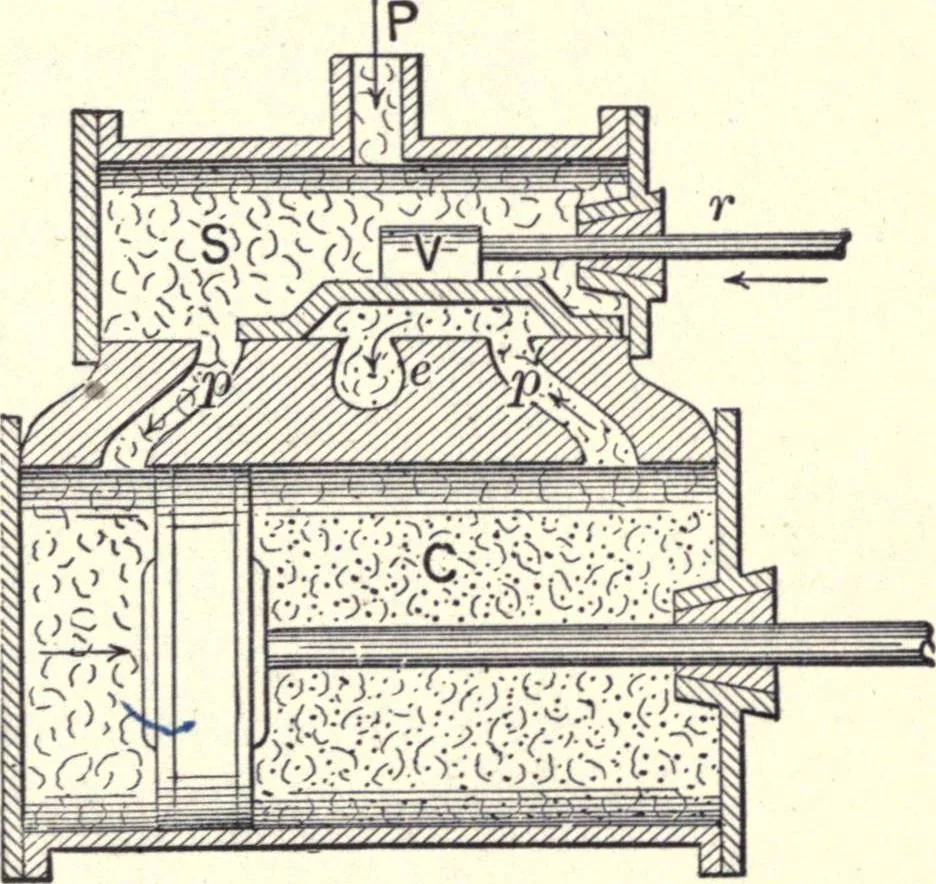

nmoves to the right, the slide valve moves to the left, the livesteam is then admitted to the cylinder by the right port andthe exhaust steam escapes by the left port. The exhaust steamis cooler than the live steam because part of the heat of thelive steam has been turned into the work done in… … FIG. 101. — The cylinder and steam chestof a steam engine. 156 PHYSICS OF THE HOUSEHOLD
