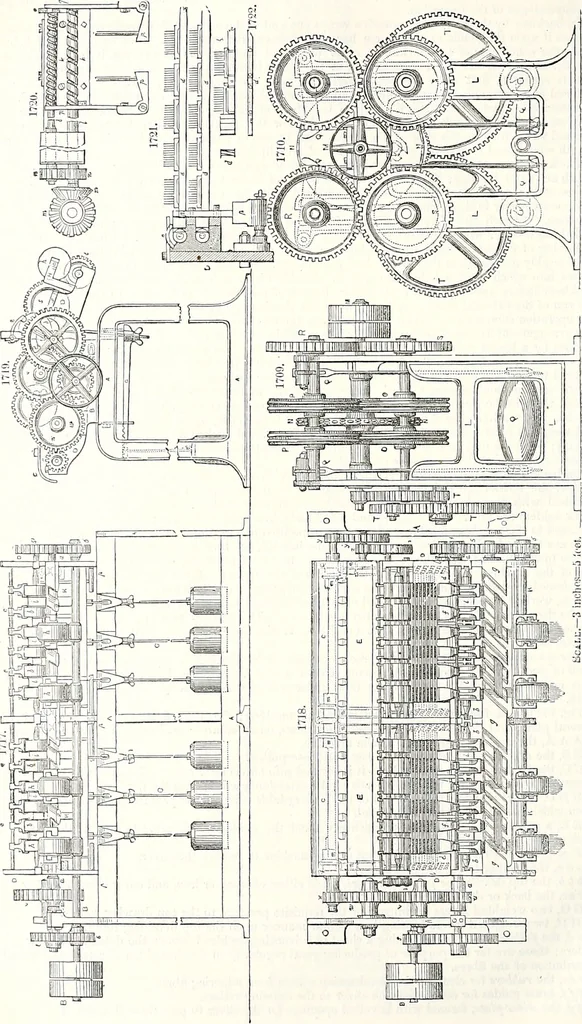

gill bars, forming a sheet of advancing hackles between the detaining and drawingrollers; these are for the purpose of producing great regularity in the draught, and a perfectly paralleldistribution of the fibres. eee, the rubbers for clearing the top drawing rollers from adhering fibres. ///>… … FLAX, MACHINERY FOR PREPARING AND SPINNING. 063 k It, the calender rollers, by which the four slivers are compressed into ODe, and delivered in theform of a riband into the can F. K, the calender rolling shaft. i i, cast-iron hangers for transmitting the pressure of the weighted lever G to the top…
