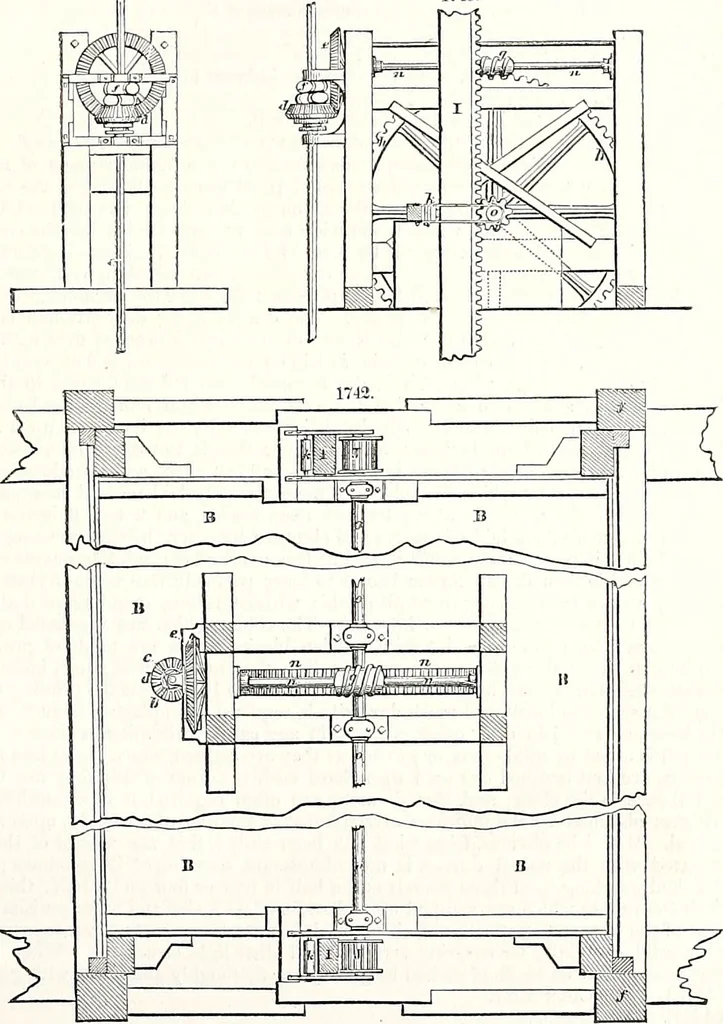

rod working on h. H, the cross-head. h. the crank on the main driving shaft i. i, the main driving shaft. ;, balance wheeL * A- k, the main bevel wheel geering, transmitting the power from the main driving shaft i to thelongitudinal driving shaft /. /, longitudinal driving shaft working the… … o, pulley or wheel on shaft I for setting in action the pumping apparatus, and connected by a belt with p. p, pulley or wheel driving the pump shaft r.q, a movable pulley for tightening or loosening the belt connecting o and p.r, a crank shaft working the pump rods t. s, a balance wheel on the pump…
