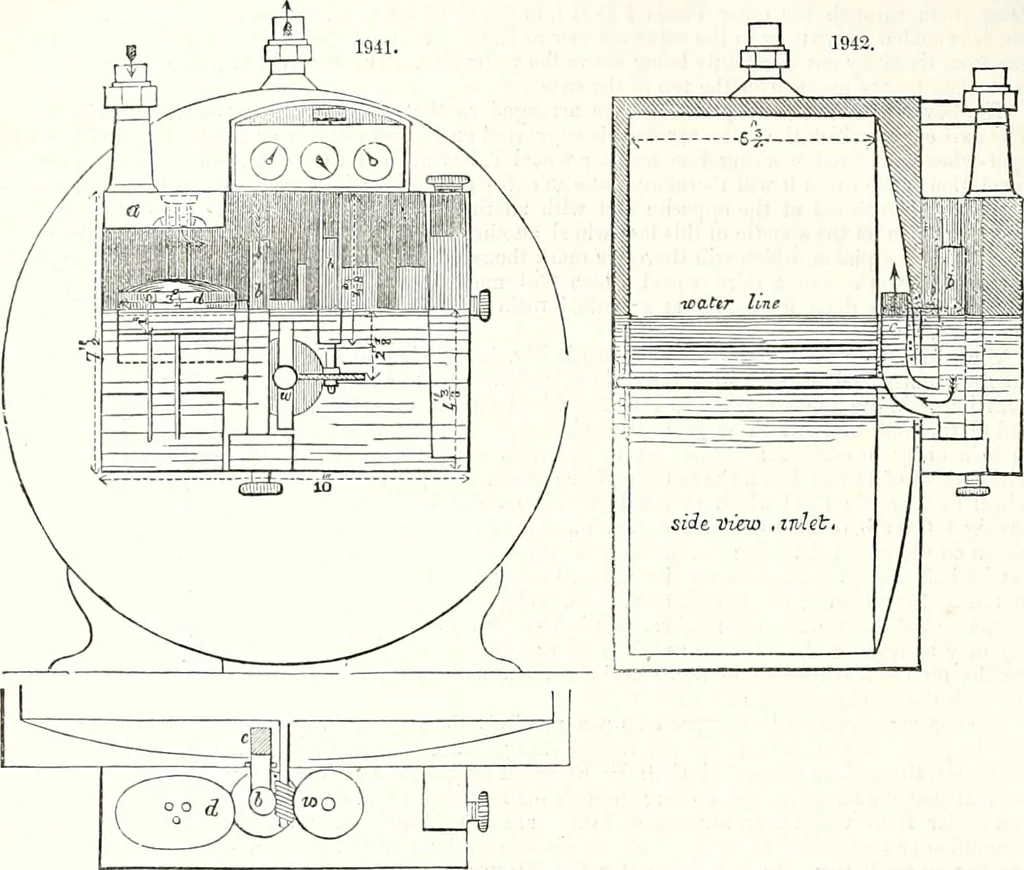

; the space left between each plate forming, on one side of the drum, the 76G GAS. inlet and on the other side the outlet for the gas: the area of the latter being greater than the inlet, toinsure perfect freedom of action. The dotted lines show the wrap of the hoods. Fig. 1940 representsa view of… … understood. The direction of the gas is marked by arrows. The box a, in which the inlet-valve is con-tained, is soldered tight, having no communication with the rest of the case, except through the valve,the position of whicli is shown by the arrows; 6 is the inlet-pipe projecting above the…
