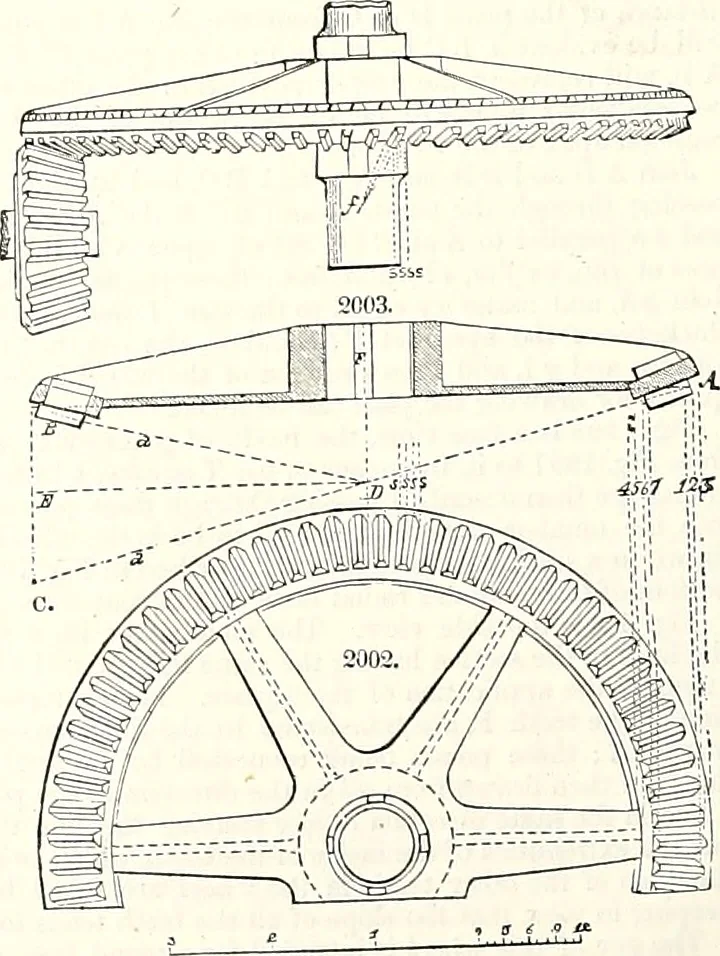

shown at a, as in such cases they willnot differ sensibly from the parallel. A bevelled mortise-wheel.—Figs. 2002, 2003,md 2004, are plan, section, and side view of abevel-wheel, having wooden teeth, commonlytermed cogs. The ratio which the wheel andpiuion bear to each other is four toone, as will… … GEERING. 807 represent the diameter of the wheel, and B C that of the pinion. By following the instructions given itFigs. 1997, 199S, and 1999, the point D will be found to be the junction of the tw-o cones, and conse-quently that point to which all the lines of the teeth are drawn. The manner of…
