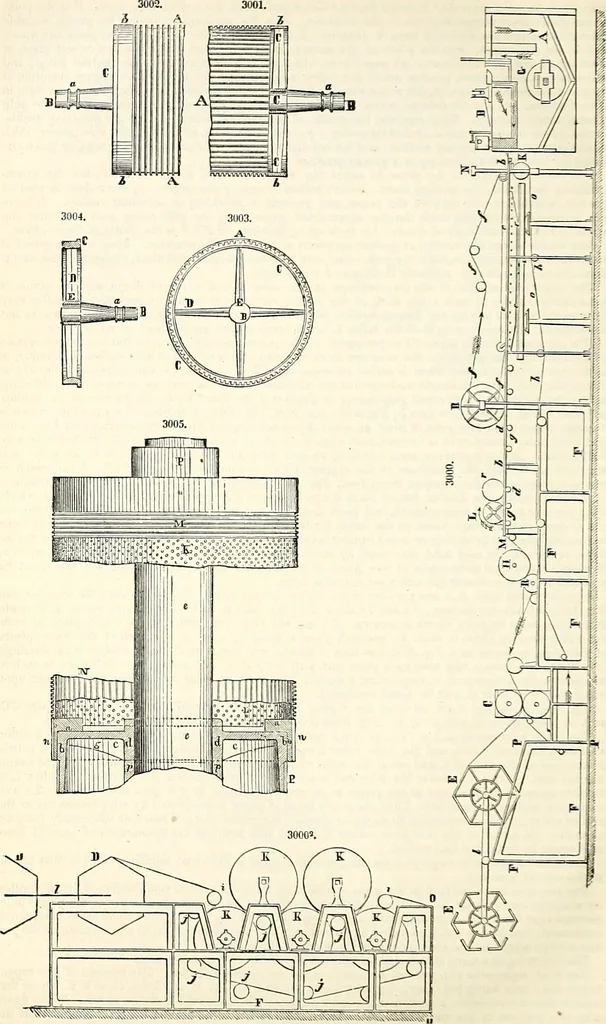

following is a more detailed illustration of Mr. Wilkss improved roBer: Fig. 3005 represents two parts of his double-cased exhausting cylinder. This consists of two coppertubes, one nicely lining the other; the inner beingjiunched full of round holes, as at KK, where thattube is shown uncovered ; a… … I* • PAPER MACHINES. 457 latter an internal view. Here -we see that the external tube is the ribbed perforated one already de-scribed ; the holes in tlie inner tube being made in rows to correspond with the grooves in the outer.The holes are so distributed that every hole in one row shall be…
