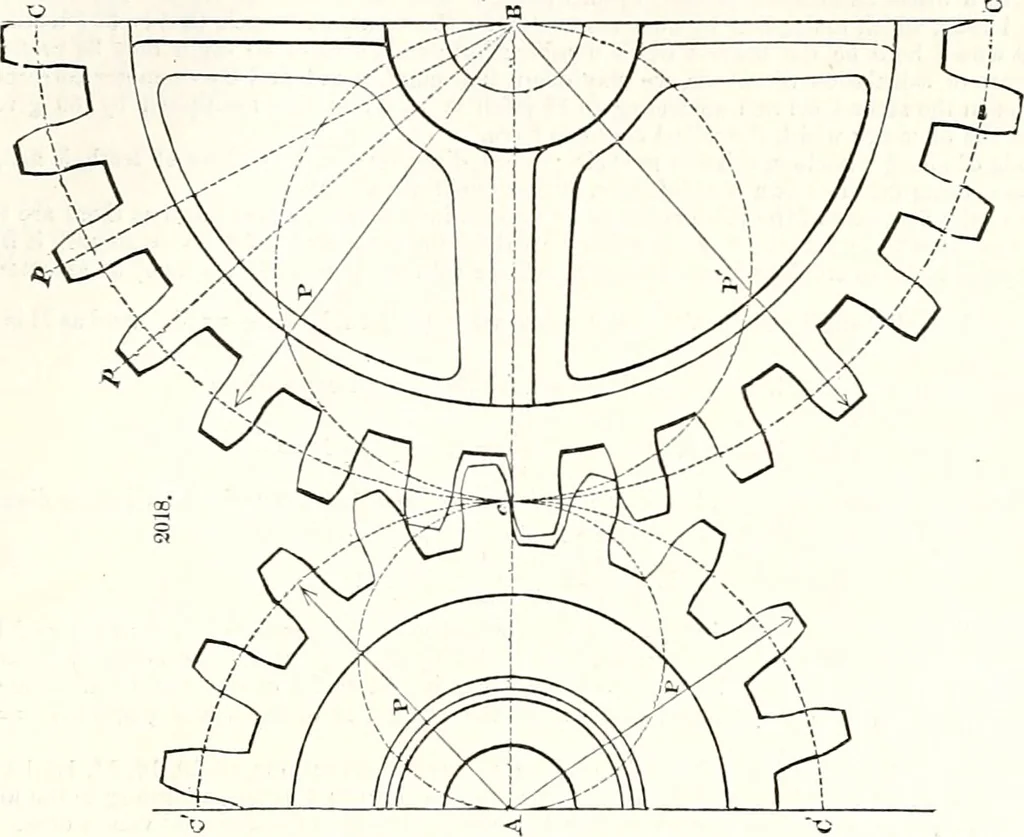

GEERING. 813 One of these arcs, as that intercepted by pp in Fig. 2018, comprehends a complete tooth a7id space,meaning by space the hollow opening between two contiguous teeth. … By the pitch lines of a geering pair is, therefore, to beunderstood the proportional circles in which they wouldrevolve upon each other if they were simply cylinderswithout teeth; and the pitch of the teeth is the lengthof arc of the pitch circles, measured from the centre ofone tooth to the centre…
