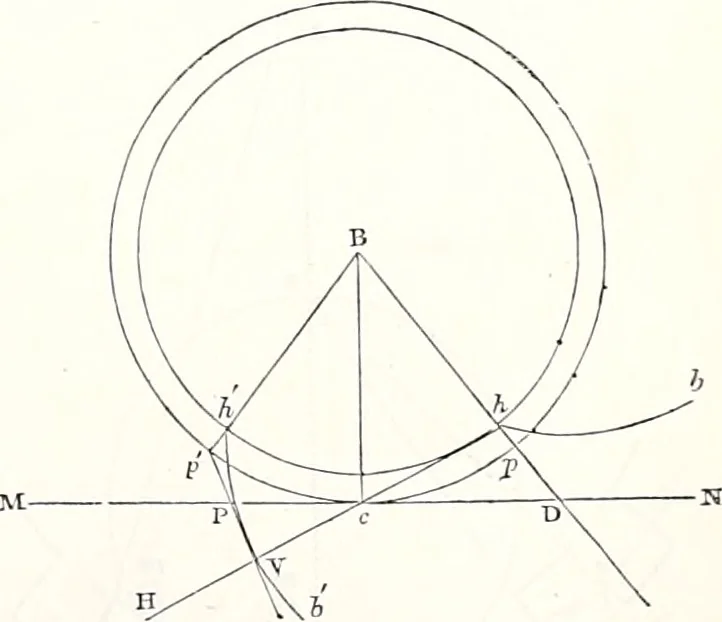

. If the generating circle have a diameterequal to the radius of the pinion, the flanks of the pinion-teeth will then be radial, and this form mayalso be modified by taking a circle of greater or less diameter. To determine the pitch circle of the pinion, let D represent the distance through which… … 846 GEERING. pinion are to be driven by the action of their teeth, as they would by the contact of the circumference ofthe pitch circle of the pinion with the plane face of the rack, so that the space moved through by therack during one complete revolution of the pinion must precisely equal the…
