A practical work-shop companion for tin, sheet-iron, and copper-plate workers ... with numerous valuable receipts and manipulations for every-day use in the work-shop (1904)
Blinn, Leroy J. [from old catalog] · Philadelphia, H. C. Baird & co. · leaf 25

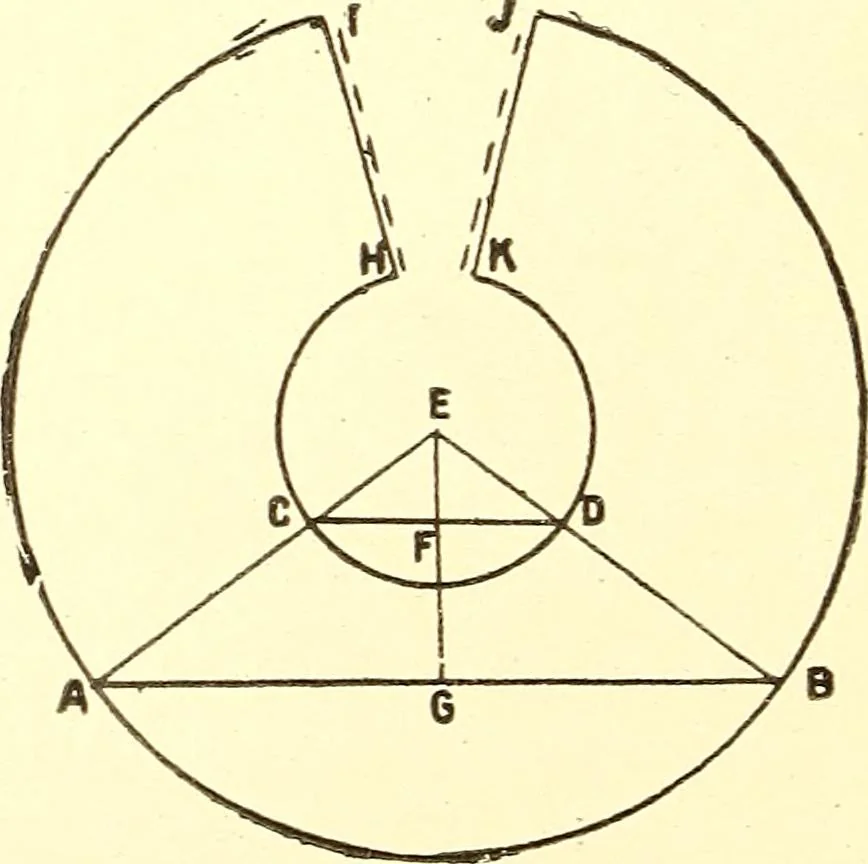

cumference of AB required for a pattern; draw the linesCI and DJ, cutting the centre at E. Edges for folding or lapping to be allowed, drawing thelines parallel to CI and DJ, as shown by the dotted lines. Obs.—The term altitude denotes perpendicular height;as from G to K in Fig. 2. CAN TOP OR DECK… … ■<S- 3- To describe a Can Top or Deck J^lange.—Ltt AB (Fig. 3) FRUSTUM OF A CONE. 3 equal diameter of can, or base of a flange; CD diameterof opening in the top; FG altitude. Produce AC and BDuntil they meet at E; with E as centre, and the radii EDand EB, describe the curves IJ and HK ; set off…
