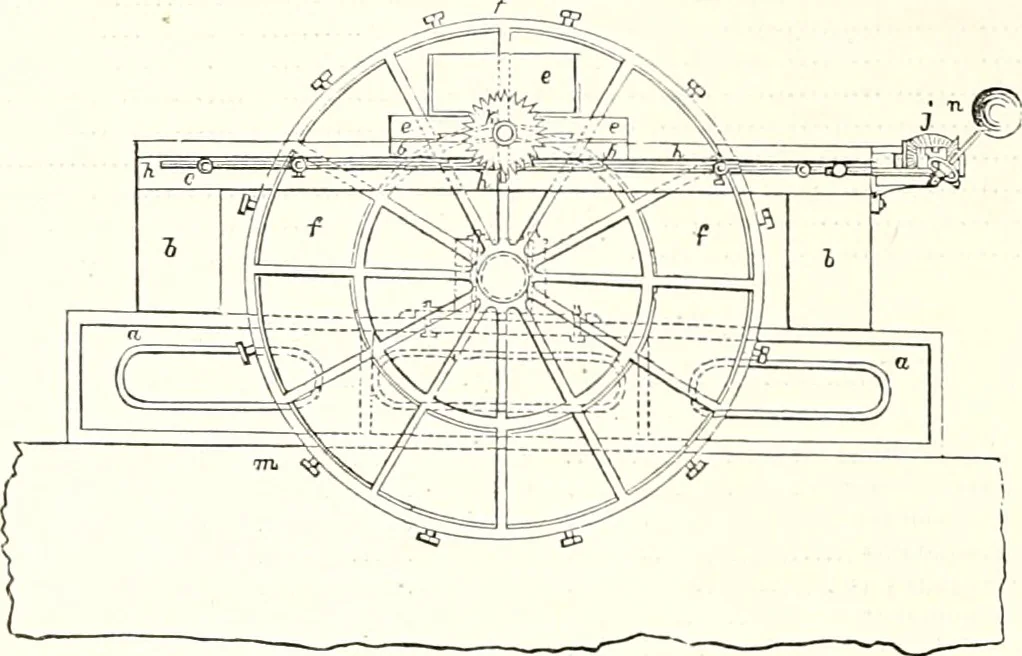

circumference. On the top of the cross-frames a; are placedtwo longitudinal fames bb, made also of cast-iron, for supporting the long bed-frames cc, and also theself-acting apparatus furnished to this machine. Two motions, the one at right angles to the other, arsgiven by°the slides d working along… … The self-acting motion given to the work being faced, by means of which it slides along the oea ewhile the grinding stones are revolving on their axes, is thus obtained: on the main shaft next to thedriving-riggers or pulleys g, is a worm I, which, as it revolves, works a worm-wheel represented by…
