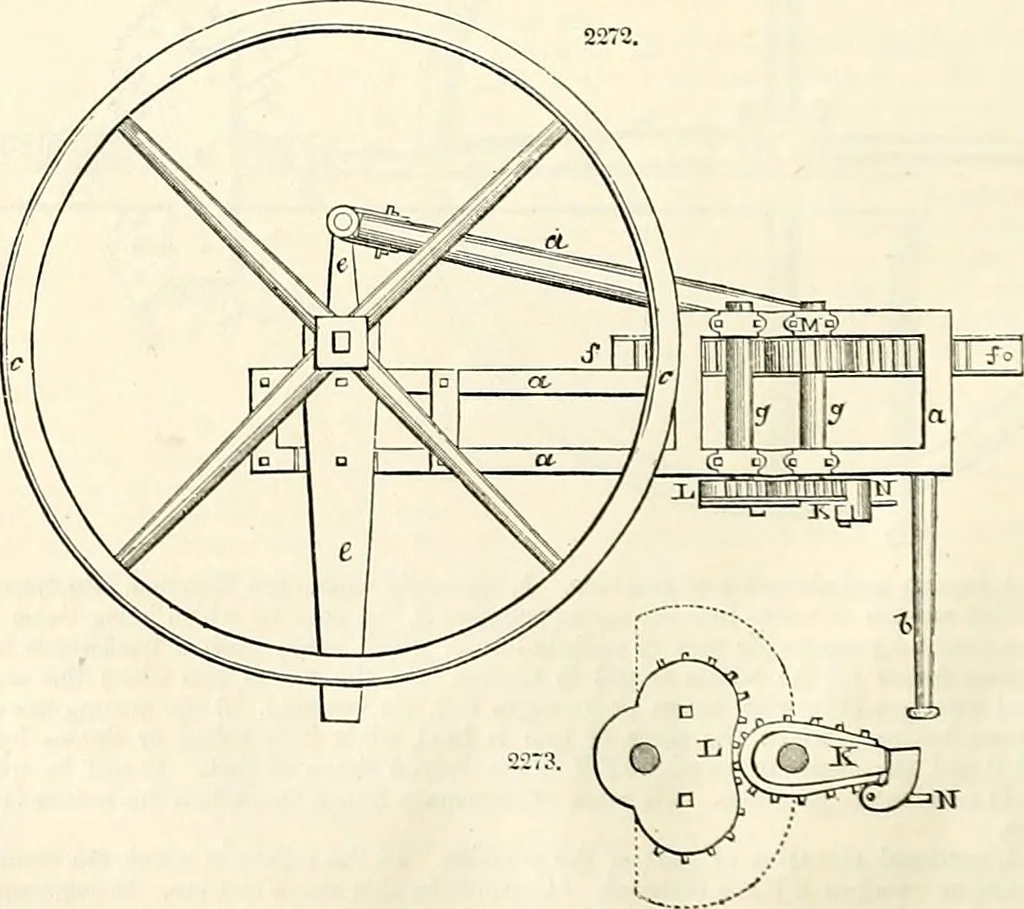

shes and fits into the rack^y, and which communicates motion to the shafts g g and pieces of iron Kand L. N a button or nipper which takes hold at the end of the horse-shoe, in consequence of itscoming in contact with the piece of iron L, and holds it fast while it is in the act of bending; and… … /ig 227-t, plan of machine for bending horse-shoes, a a the frame. cthefly-wheeL c the crank-shafti the connecting-rod. / a rack. M a wheel, whose cog mashes or fits into tlie cogs of the rock /L the eccentric piece of iron which tits into the piece K, on which the shoe is formed, as seen at Figs…
