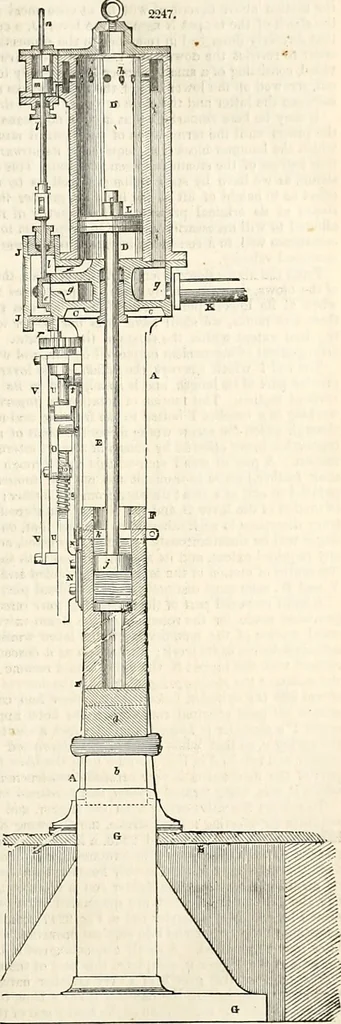

ull open.This countL^racting force is supplied by the actionof the hammer itself; for, by means of the tap-pet N, (which is bolted to the hammer-block,)coming into sliding contact, when the latter israised, with the small friction-roller o, mounted on the end of a bent lever O O. the screwed rod… … HAMMER. valve e is raised, tlius cutting off all further ingress of steam under tlie piston, and almost at i,.e sameinstant permitting the escape of that ■which had served to raise the hammer. By this simple contri-vance the upward motion of the hammer is made the agent for its own control in that…
