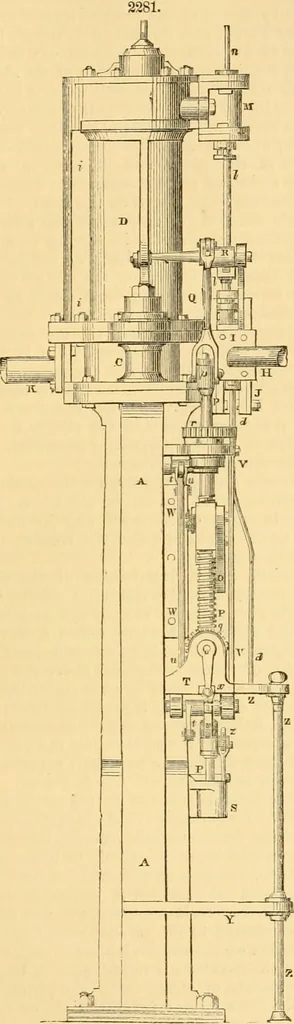

hey occupyat the termination of a stroke. Fig. 2280 is a general plan corresponding to the above. Fig. 2281 is an end elevation, and Fig. 2282 a vertical transverse section of the machine. HAMMERS, STEAM, DIRECT-ACTING. 91 Fig 2283 is a sectional elevation of a portion of the machine, showing the… … 22S2. further secured by keys to a broad base-plateB B, imbedded in the solid masonry forming partof the floor of the forge. The standards aresurmounted, and their upper extremities united,by a species of entablature C, in which the steam-passages and valve-face are formed, and to theupper surface…
