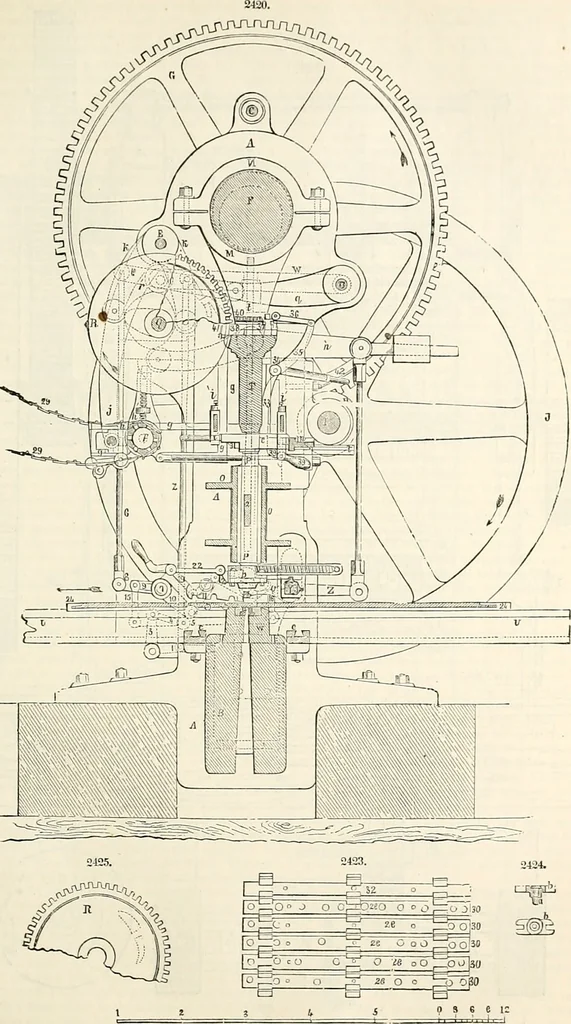

and of the lever tn which traverses tlie plat. K a fiOcram shaft,to which the levers /y and i-i are keyed. F the main or eccentric shaft, working in bushes in thestandards. G a spur-wheel, keyed on the eccentric-shaft. ][ a pinion, workiug into the wheel G. I thefly-wheel sliaft, on which are the… … 0 0 guide-plateg for the punch-rams P P. Q the cam-shaft R a spur-wheel, loose on the cam-snailand havmg on one side two projections, between which there is an opening. R* a locking-disk or plate 138 JACQUARD PERFORATING MACHINE.
