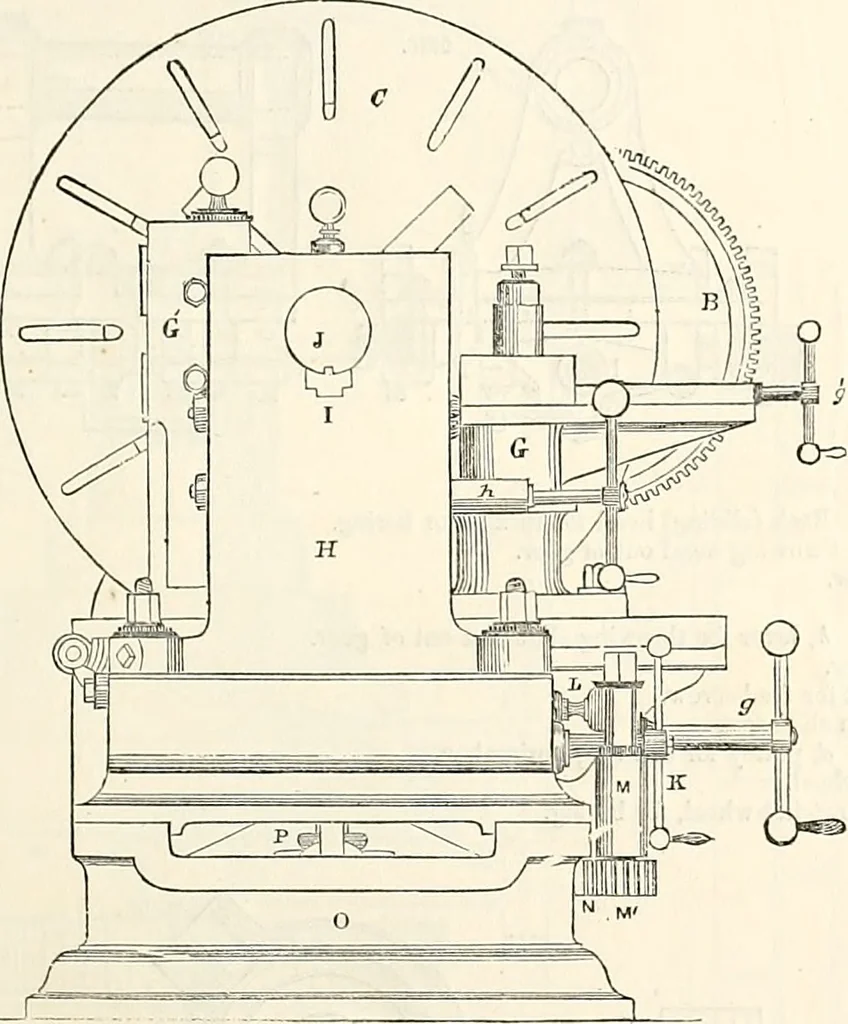

, cone-pulley of cast-iron wliich runs on the live spindle. The spindle has strong journals, runningin gun-metal bo.\es. A, geer on face-plate. B, geer on front shaft. 0, shaft, thrown out of and into geer by eccentrics. C, face-plate, to which the work is fastened by means of bolts. D, upper cone… … F, head-stock in which the live spindle rests. G, swivel-post on which the tool-holder slides.g, bed-piece on which G stands. 6, rest, with jaws, for using flat drills and reamers, adjusted by the screw on top. H, upper part of tail-stock, inside of which is the feeding apparatus. This piece rests…
