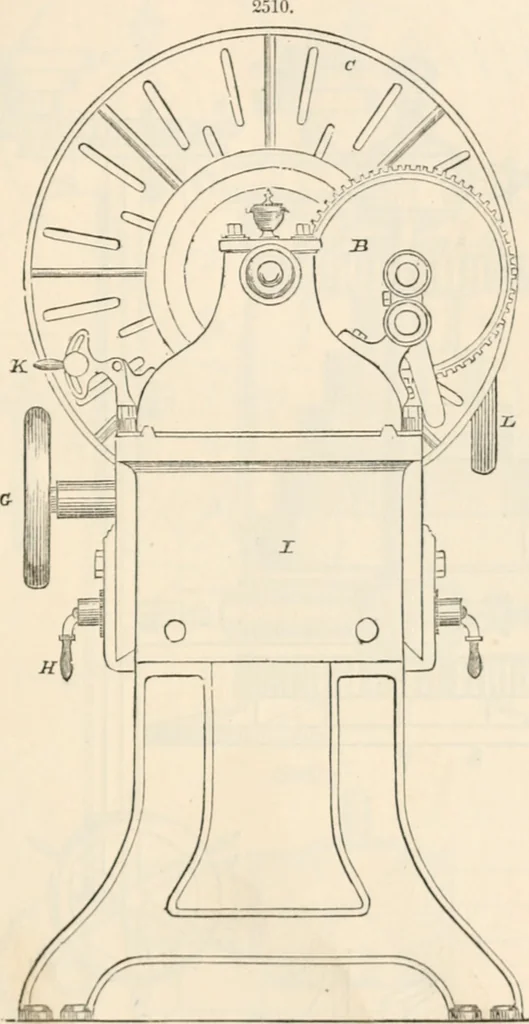

REAMING. Figs. 2509 and 2510. I, the main bed-piece, supported by twocast-iron standards. D, head-stock, which carries the spindle and cone-pulleys A. G, sliding-frame that supports rest P. This frame is traversed backward and forward by means o(the hand-wheel R, which has a pinion on the other end… … C, bee plate on live spindle, t.. which the work i- fastened by bolts when drilling or reaming.F, tail-stock, with a ti . pindle, worked by the band-wheel M. which turn- a screw inside ot spindle in ili u aal way, for pressing in the drills or reamers, AcL, hand-wh I on a tting the tail is to make…
