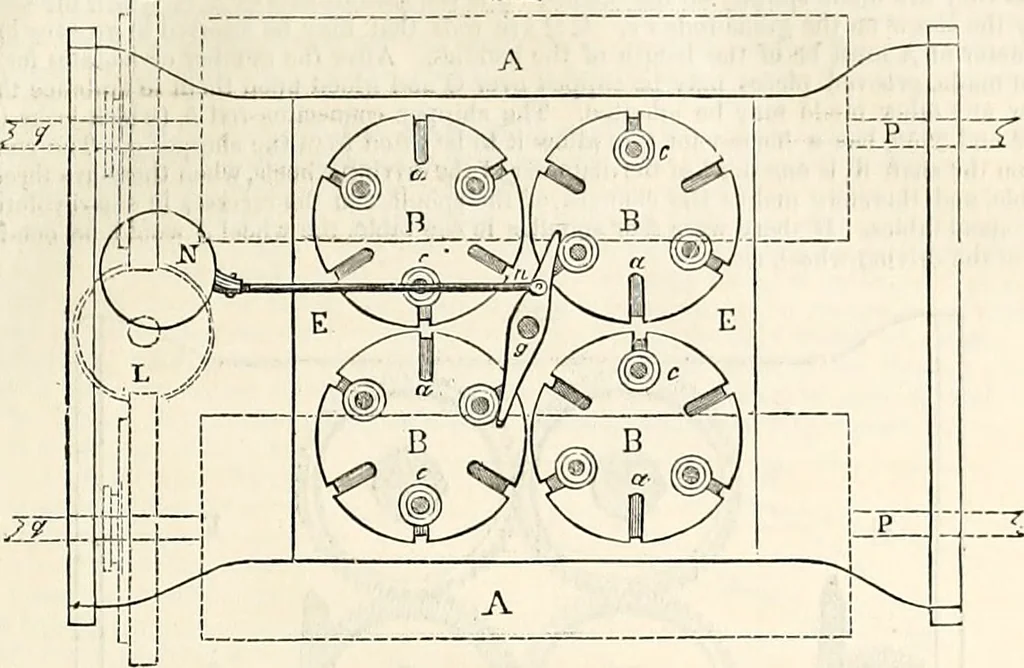

to the recesses of the tables when the recesses coincide. The platform E E h.is circularivities for the lower ends of the spindles. FF, Fig. 2252, ai-e fast and loose pulleys to drive the HEDDLES. 19 eliaft G. A bevel-wheel H, on 0, gives motion to the revolving spool-tables by toothed wheels, as… … to vibrate ^, a shipper, which shifts the spindles from one table to another; the opposite ends of ^operate on two pau-s of tables. A connecting-rod witli N vibrates the sliippers. N is connected with K,and turns with it by clutch-pins, and when these are not engaged the shafts turn without N. i i,…
