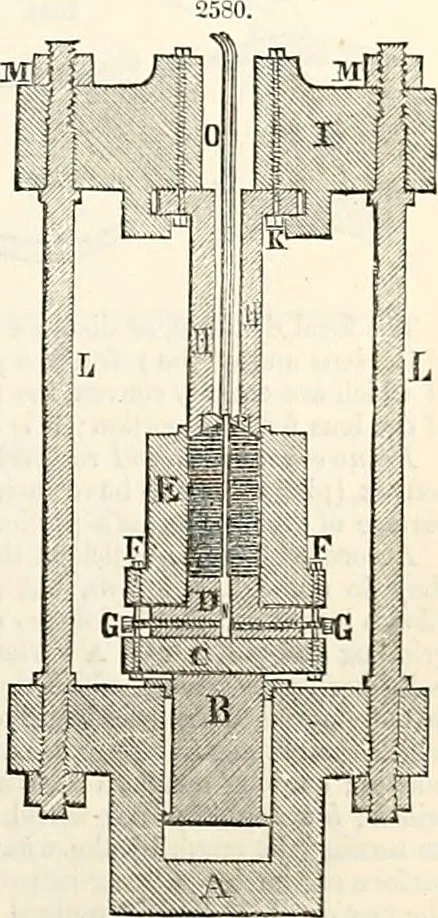

iine of the said Thomas Burr. Fig. 2580 represents my invention, showing how, by different ar-rangements of the machinery, the power may be applied to thelead cylinder, which in this case is movable, whUe the piston is sta-tionary. This figure is a sectional view of the hydraulic press and pipe… … 21S LENS. connected with tlie upper cross-head I, by means of the rods L L, ■vrliich are secured at the top andbottom by the nuts MM MM, turned on the screws at the ends of the rods. On the top of the ram ahead-block C is placed, and there secured. A foot-block D is attached to the bottom of the…
