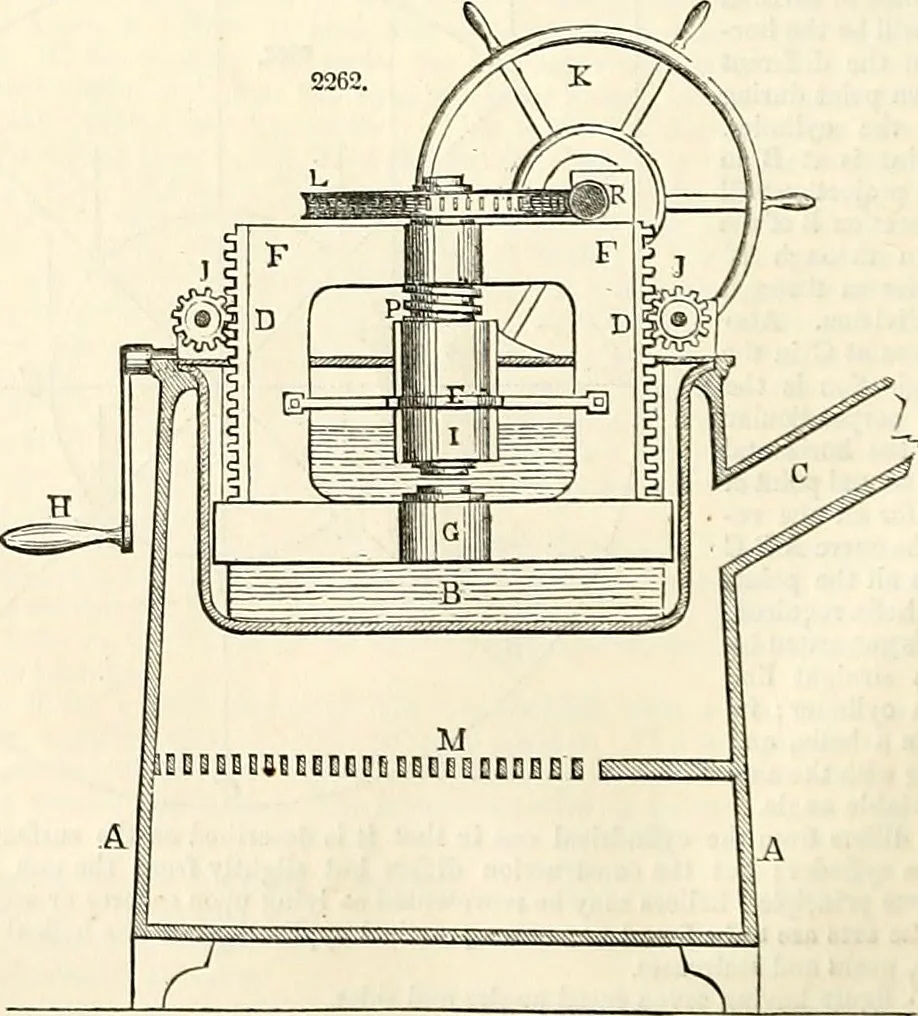

so that thehinge nresents the same appearance in either position. HINGES. The joints on which doors, gates, &c., turn. HIP. The external angle foi-med by the meeting of the sloping sides of roofs which have then- wall-p.ates running in different directions. HORN. See Animal IMattek used in the… … luid most delicate relief. A screw press has usually been employed for this purpose, but the one rep-resented bv Fig. 2262, which is a section tlirough its centre, is far superior. HORSE. 19 A A is a box of cast-iron. B is a copper to contain the hot water, and M ie a grate for the fire to heatthe…
