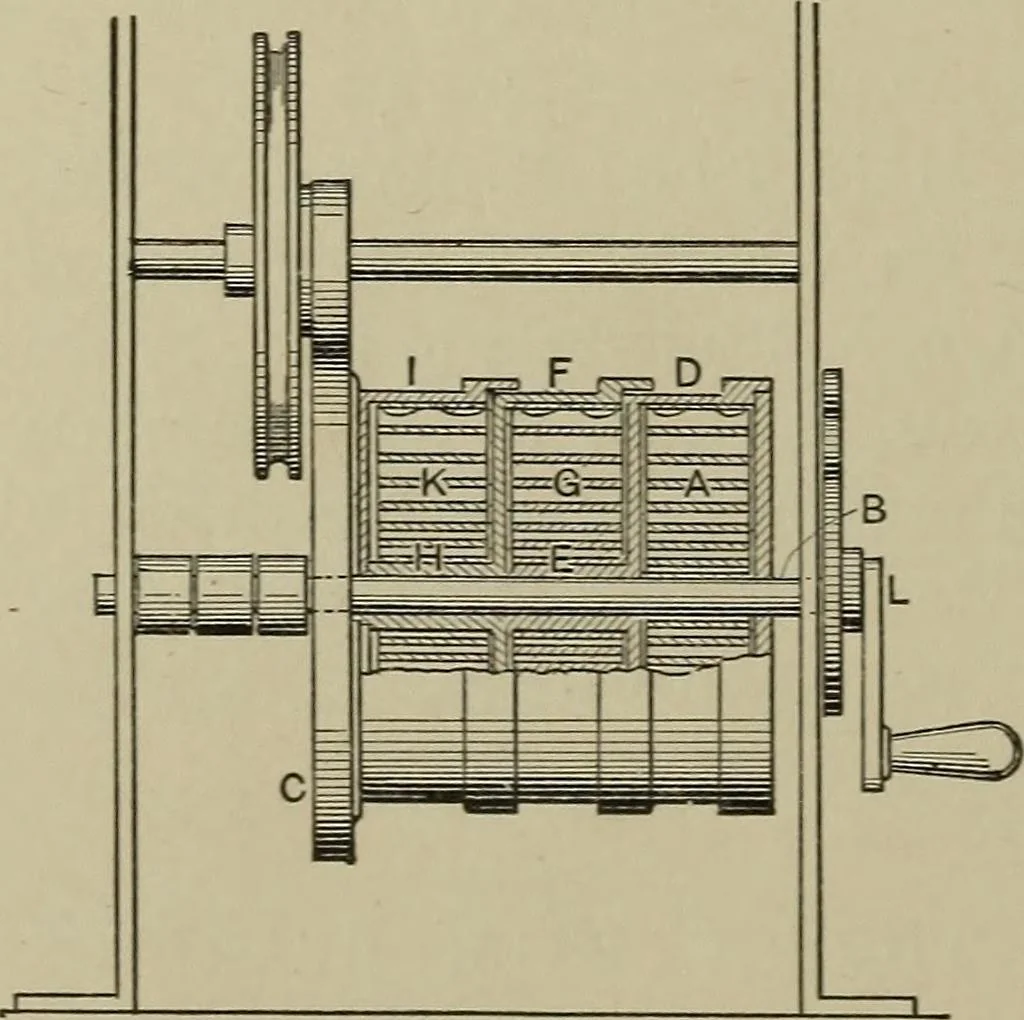

erves formounting the spring drums andthe transmitting wheel C. At theouter end of said coil this spring,A, is attached to the hollow drum D mounted loosely on the shaft. Thisdrum has a central hub, E, extending along the shaft B within the seconddrum F, and the spring G in said drum is attached to… … MOTION AND CONTROLLING DEVICES, ETC. 253 663. SPRING MOTOR. A pair of shafts arranged parallel to eachother, and geared together so that one turns faster than the other, and a long India-rubber or otherelastic band or cord woundor coiled on the shaft whichmoves slowest, then attachedto the other…
