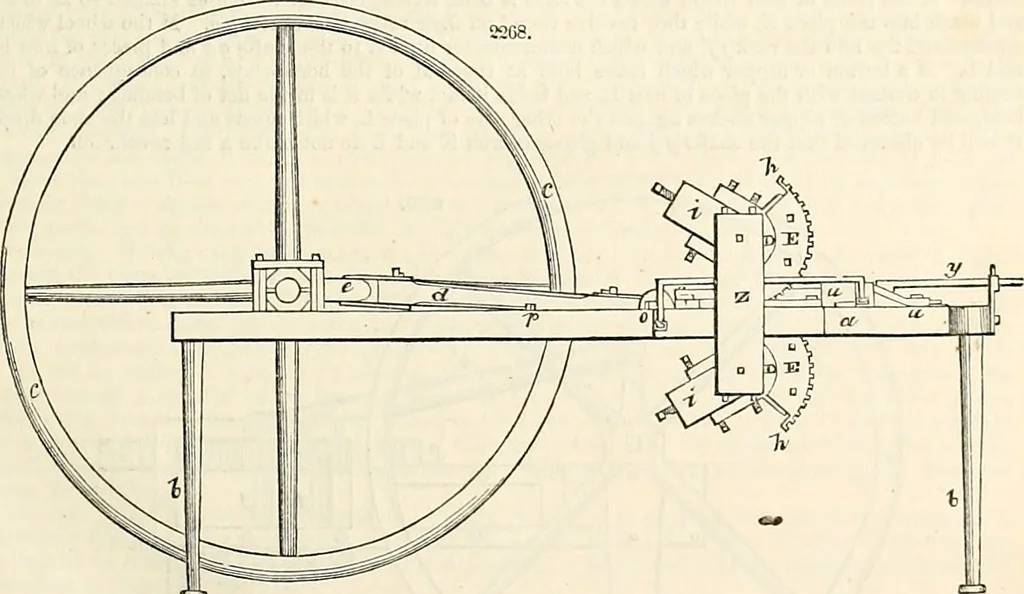

of iron to lay the bar onas a guide while in the act of feeding into the machine. Z Z end view and section of the posts throughwhich the rollers i i are fastened and revolve; A, piece of iron or stop which graduates the length o.shoe; B, piece of iron having a hole in it, through which the iron or… … Fig. 2208, section and elevation of machine. ^, segments which are fastened into the rollers ii\ 0,the rack which mashes or works into the upper segment A, the cogs of wliich being twice the length i ithe under segment h permits the rack to operate into it, which, when pushed backwards and…
