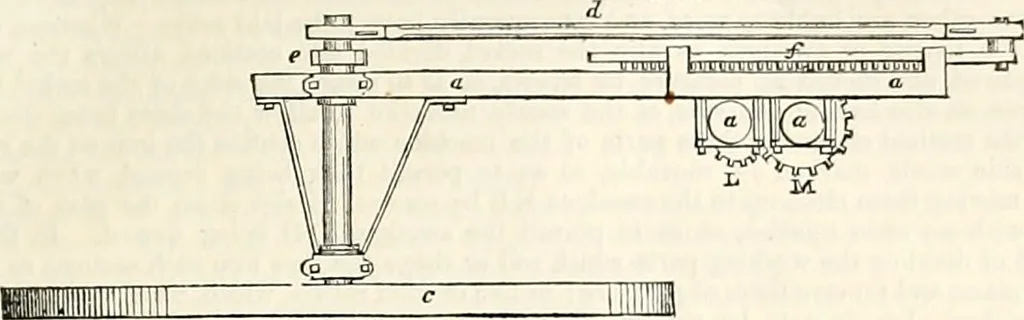

in the act of bending around tlie piece K,as represented by the dotted lines at Fig. 2273. Fig. 2273, section of the irons K and L. These two pieces, IC and L, are fastened on the shaft ffifwith their reversed sides up from what they appear in tlie drawing. Tlie dotted lines represent a cap,which… … The nature of the operation is as follows:— Firstly: Fig. 2267 represents a section of the machine, having the upper roller i removed, so as toshow more distinctly the interior arrangement of the machine. Supposmg a pulley of about four feetdiameter were bolted to the arms of the fly-wheel c,…
