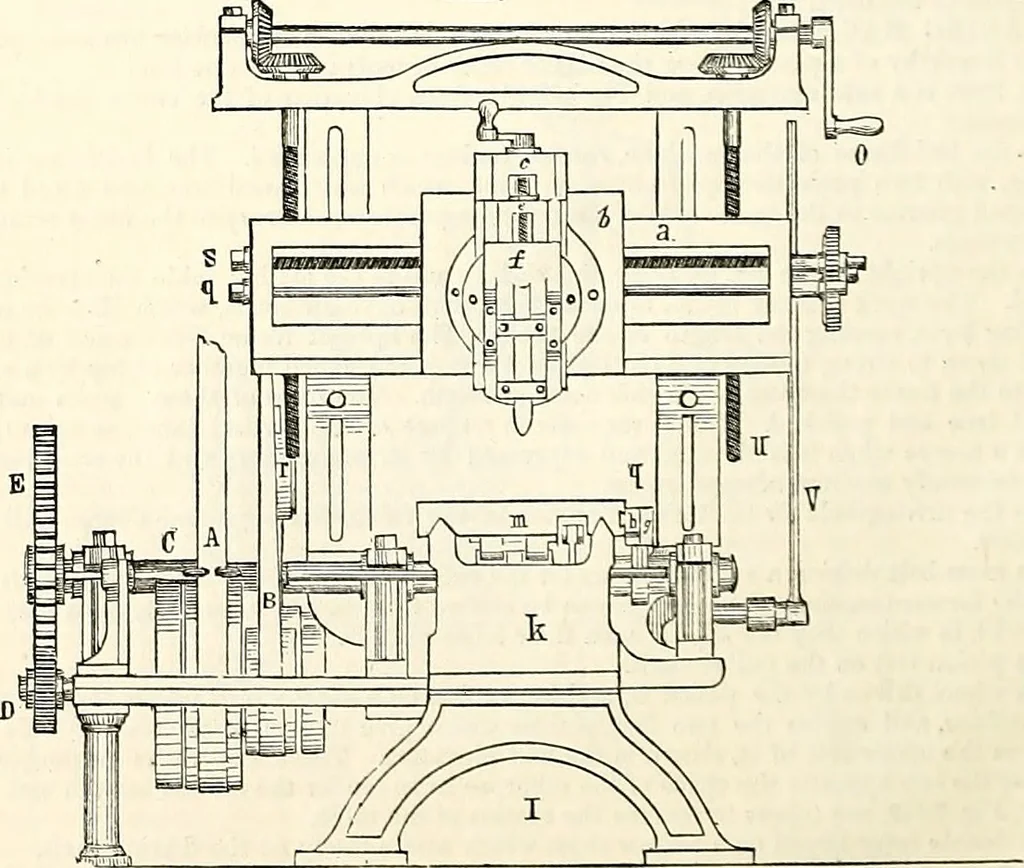

The machine is set i.n motion by moving the belt-guide towards the offside of the machine, by ■whichme belt is shifted on the narrow pulley, which is the driver. The sliding table is thus put in motion,atio. <noTes towards the back part of the machine, until the tapet 71, catching one of the… … lever <?, tnrns it over, throwing outward the weight r, by the connecting-rod x, which is worked by alever fast on the hollow shaft with cf. The weights r r. and lever (, being fast on the same shaft and connected by a link with II, the whole I PLANING MACHINE. 505 s simultaneously put in…
