Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 319

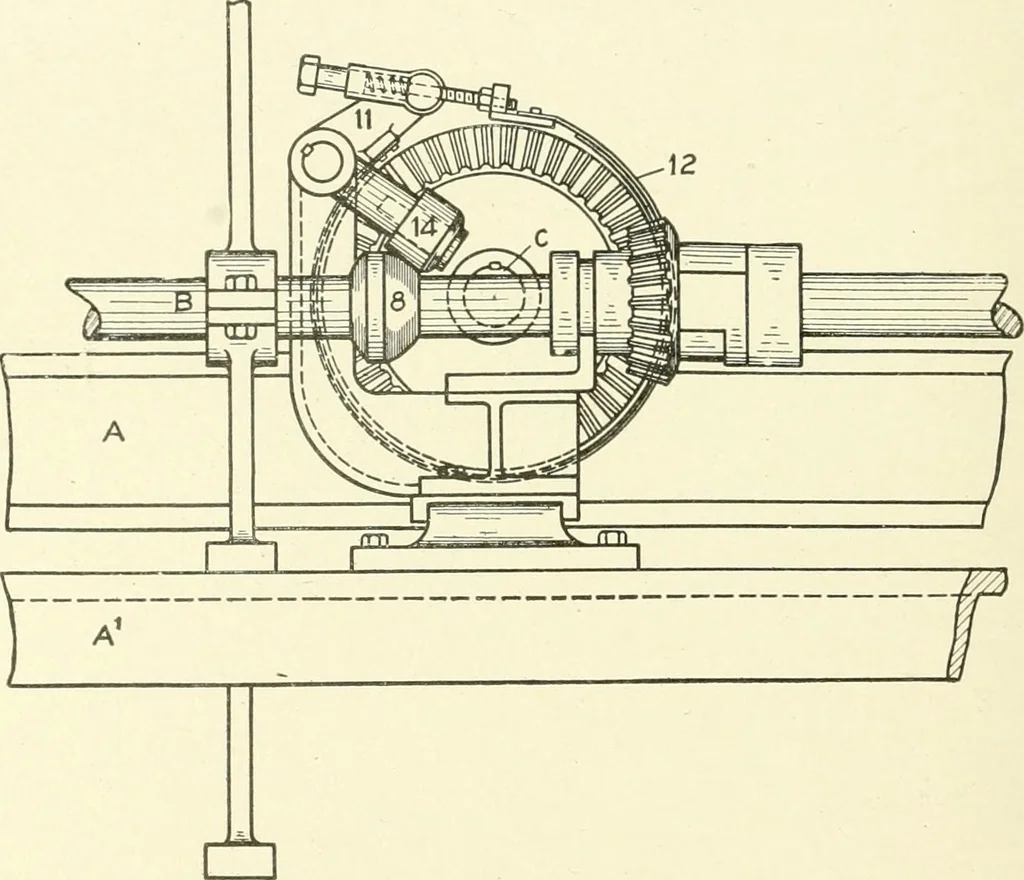

adjustment of the needle-bars. It is very importantthat the needles should always be in exact co-operating position withthe sinkers; and it will readily be understood by referring to theillustration, that the double bolt and jam-nut of this double-armedneedle-bar crank furnish accurate means for… … Fig. 183. Draw-Cam Shaft Brake,shaft takes place—in other words, as soon as the machine commencesto narrow. In nearly all other machines this stopping of the draw-.cam shaft is done by a key pushing in betw^een the teeth of the bevelgear on the cam-shaft. This improved brake works with a steel…
Knitting machines
