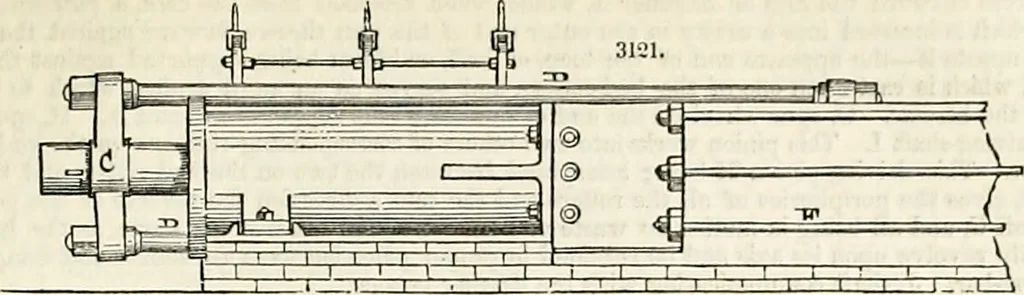

PROVING MACHINE, HYDROSTATIC,/or proving cham-eables. Figs. 3119, 8120, 3121 sqJ8122 represent a machine designed and constructed by Wsi. il. Ellis, engineer. United States NavvYard, Washingtoa A A, plan, Fig. 3119, water cistern, with three force-pumpi PUDDLERS BALLS. 627 … B, hydrostatic cylinder. C C, wrought-iron cross-heads. D D, wrought-iron bars, connecting crossheads C C. F, granite sills. H, screw-wheel, for forcing back the ram, E, Fig. 3120, compound levers, for ascertaining the strain: proportion, 1 to 200. Fig. 3122, section.
