Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 640

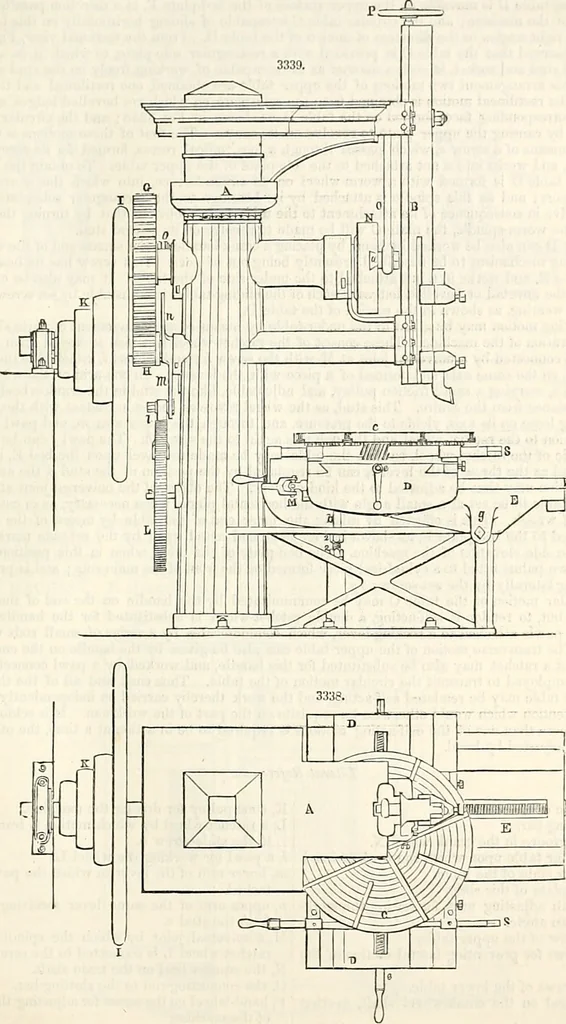

ures the stud in the required position, while the connecting loais left free to revolve on tlie ferule, in consequence of tlie latter Ijein^ slightly greater in lengtli tharthe eye of the rod. Tlie position of tlie stud in relation to the centre of the crank-wheel obviously determines the length of… … &h The crank-wheel N is fiist upon the end of a strong shaft which passes througK a long socket castui the middle bracket of the frame, and which is bushed at the two extremities. These bushes areformed in halves, to admit of their being adjusted, as they wear, by cotters acting against the…
Mechanical engineering · Mechanics · Engineering
Internet Archive · Public Domain Mark 1.0. Free to use for anything.
