Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 684

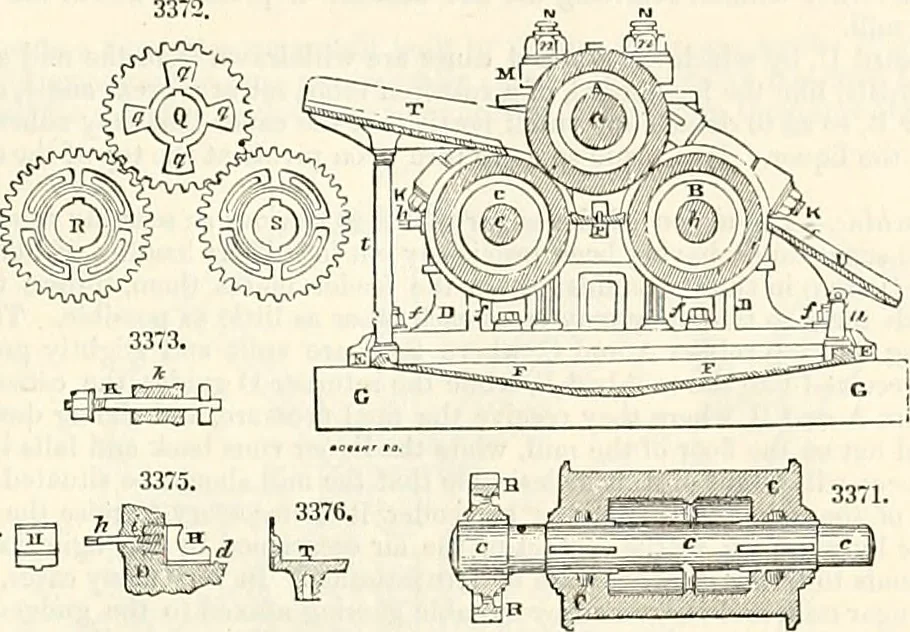

or cistern, the bottom ofwhich communicates with the gutter e, also cast of a piece with the sole-plate, and through which thejuice runs off into the proper receptacles. The whole mill rests upon, and is bolted firmly to its foun-tlation G, which, in the example before us, consists of two strong… … The standards D D are, formed with indentations for the purpose of receiving the bearings H H of thefeeding and delivering rollers. These bearings consist of a single brass bush for each journal, and theirform, as well as the mode of their adjustment, is shown detached from the machine in Figs.…
