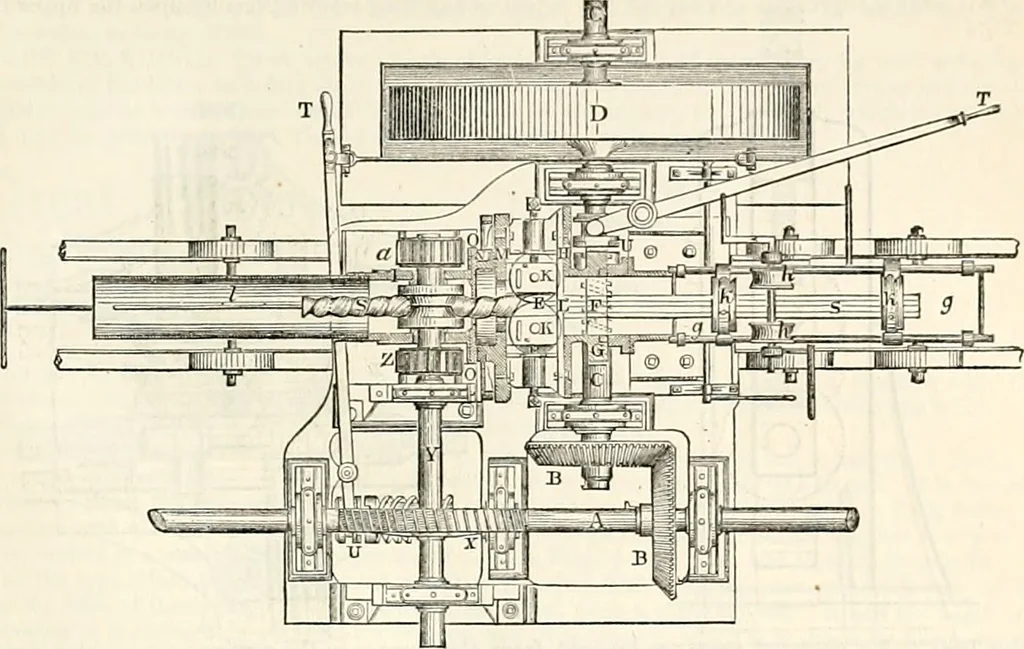

e revolution of the main sliaft C eomuiunicates a revolving movement to tlic frame-workcan-ying the rollers E E; but in addition to this movement they revolve also round their own axes, andthis is obtained by means of the two plates 1£ and M. which carry round with them two small spur-pinions P P,… … In the plan, Fig. 3686, the machine is shown as thrown out of geer with the driving-sliaft, whilst aa bar S S is passing through. This disengagement is effected by the two lever-handles T T acting eachone upon a clutch-box, corresponding with similar clutches on the worms v and v, the latter being…
