Appleton's dictionary of machines, mechanics, engine-work, and engineering (1869)
New York, Appleton · leaf 796

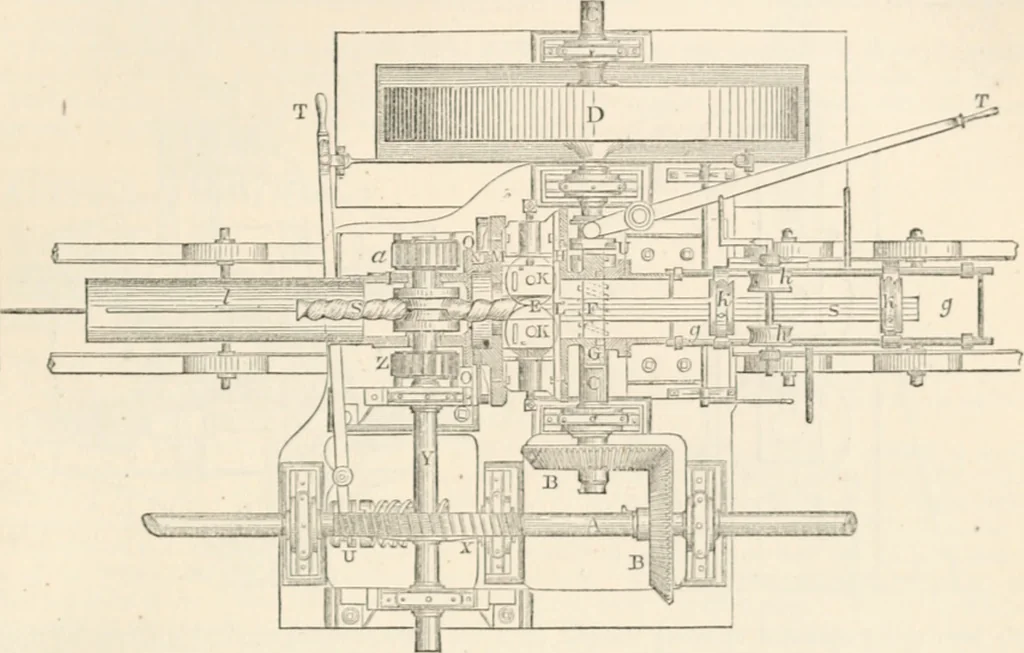

CHINE FOR IRON. bolted to flanges O O on the upright cheeks of the delivering rollera It is easy to see how by tlrangement the revolui jhaft C communical work carrying the rollers E E; but in addition to this movement they revolve also round their own axes, an Jthis is obtained 1 B an J M, which… … In the plan, Fig. 3CSG, the machine is shown as thrown out of geer with the driving-shaft, whilst n This disengagement is effected by the two Li I I acting each one upon a clutch-box, corresponding with similar clutches on the worms v and u, the latter being that h which motion is communicated to…
Mechanical engineering
