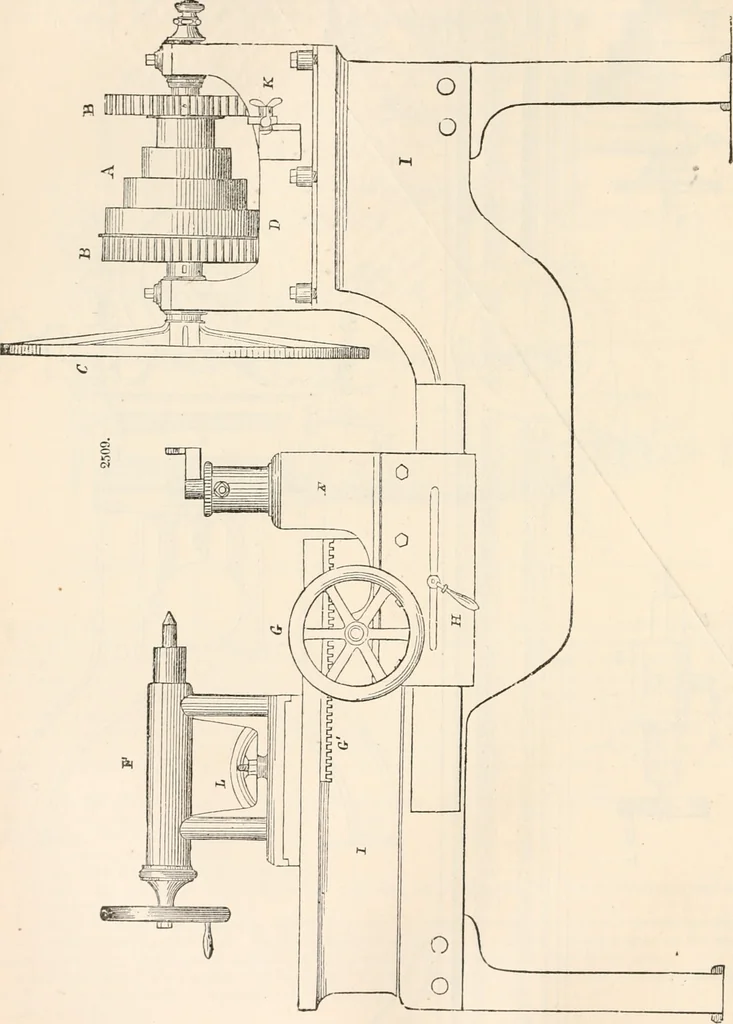

134 LATHE. … LATHE. 18; LATHE, BORING AND REAMING. Figs. 2509 and 2510. I, the main bed-piece, supported by twocast-iron standards. D, head-stock, which carries the spindle and cone-pulleys A. G, sliding-frame that supports rest P. This frame is traversed backward and forward by means o(the hand-wheel R, which…
