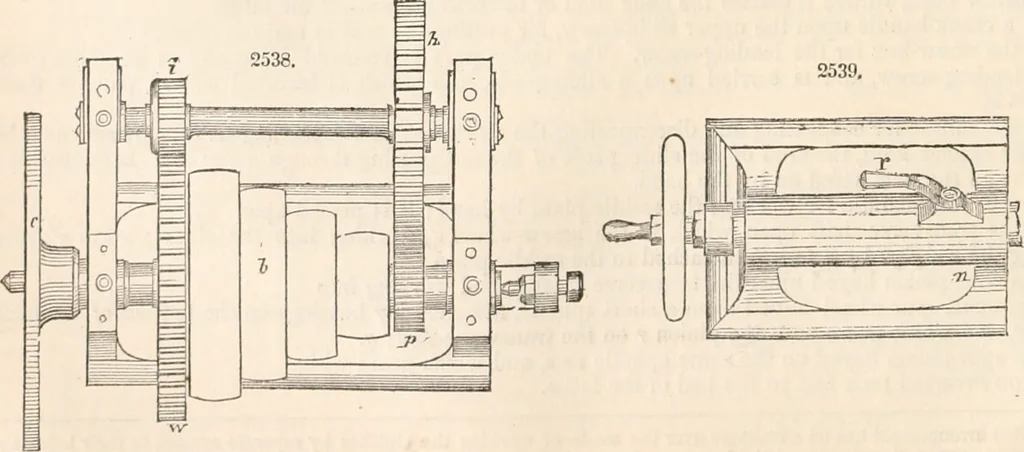

b, the driving cone-pulleys, loose on the spindle of the lathe and fast with the pinion p, Fig. 2538.h, a spur-wheel, fast on the back shaft, and i a pinion also fastened on the same, to, a wheel fast onthe lathe-spindle, geering with the pinion i. c, is the chuck or face-plate ; this admits of… … Figs. 2541 and 2540, are end and side elevations of the shifting-head of which Fig. 2539 is a plan.is a screw for shifting the spindle. A hand-wheel is placed on the outer end of it, which revolves io LATHE. 107
