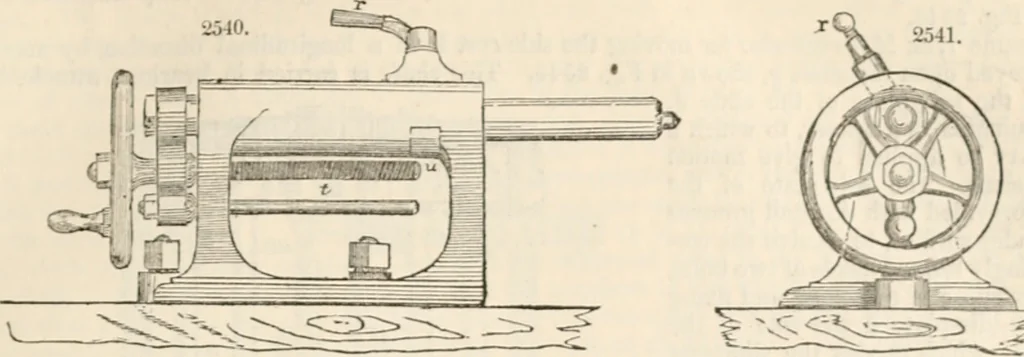

Figs. 2541 and 2540, are end and side elevations of the shifting-head of which Fig. 2539 is a plan.is a screw for shifting the spindle. A hand-wheel is placed on the outer end of it, which revolves io LATHE. 107 … a gland embracing the ends of the shifting-spindle and a guide-rod under tli» - 2540; by this means it is made tomove horizontally, and to carry the shift-ing-spindle of the head along with it. u isan eye-bolt, tightened up by the traveller ron the spindle, to take the strain off thescrew. \Vhen…
