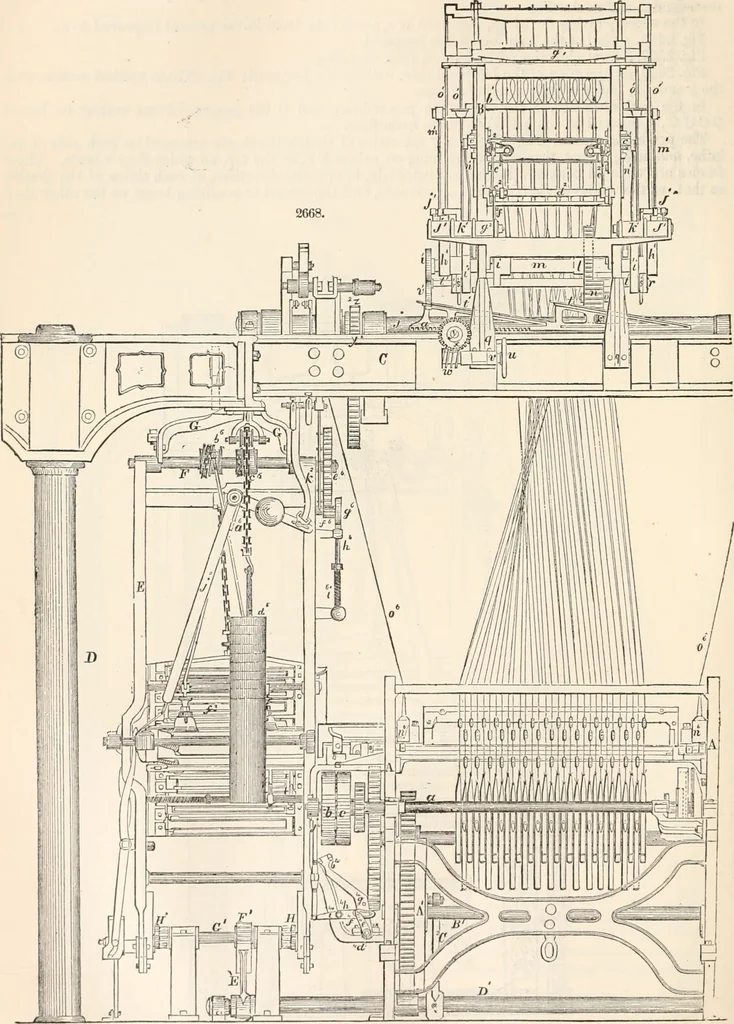

ch end the wri ta of which are Bl I I in the p< 300 LOOM, CARPET-WEAVING. arbors G G are vibrated by the rotation and peculiar form of the cam A and the connections?, thependulous frames are vibrated in opposite directions, and there held during the throw of the shuttle,and then back again. The… … which takes into and drives a bevel-wheel c on the lower end of a line-shaft/, which extends up to andhas its upper bearing in a box g attached to one of the beams C, the upper end of the said shaft havinga bevel-pinion h, which engages and carries a bevel-wheel i on one end of a horizontal shaft…
