Appleton's dictionary of machines, mechanics, engine-work, and engineering (1869)
New York, Appleton · leaf 513

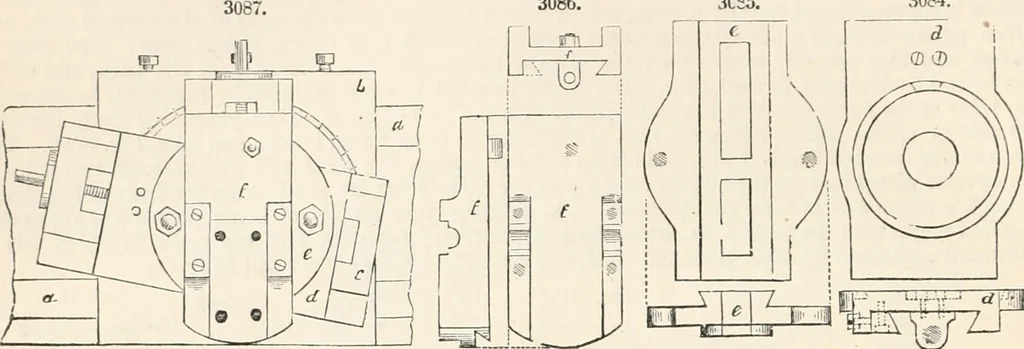

th the lever w. The spring-catch being in geer, the wheel y receivesmotion from the lever t, and being geered with a pinion on the end of the cross slide-screw, which revolves in bearings ss, it communicates its motion to the screw atid cross-slide b. The amount of ieed isadjusted by shifting the… … P^Mrgj1 This self acting feeding motion is also communicated to the down-cutting slide d by shifting thepinion from the end of the screw to the end of the small shaft which works in the bearings q q, Fig. 3080On this shaft is a small bevel-wheel shown at Figs. 3081 and 3082, which is carried round…
Mechanical engineering
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
