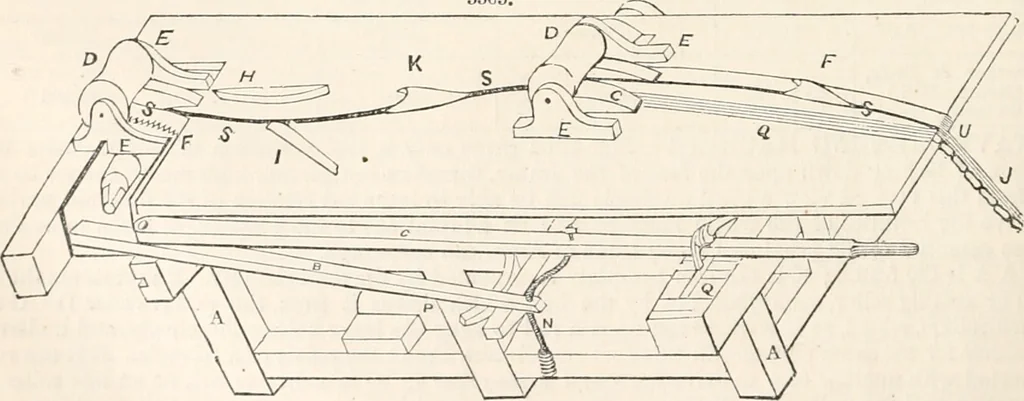

pieces over which the stave passes, which raised pieces together with the concave rollersD D form throats or slots just the thickness of the stave, and through which the stave is made to passH, a guide-piece to conduct the stave to the second saw. I, a light spring to press the stave against… … is underneath, and does not appear in the engraving except at J. LL, movable frame that supportsthe saw, and that is attached to and acted upon by lever B to adjust the saw to the width of the stave.M, journal-box. F P, pulleys to drive the circular saw. 0, pawls, or hold-fasts, to lever C. NN,…
