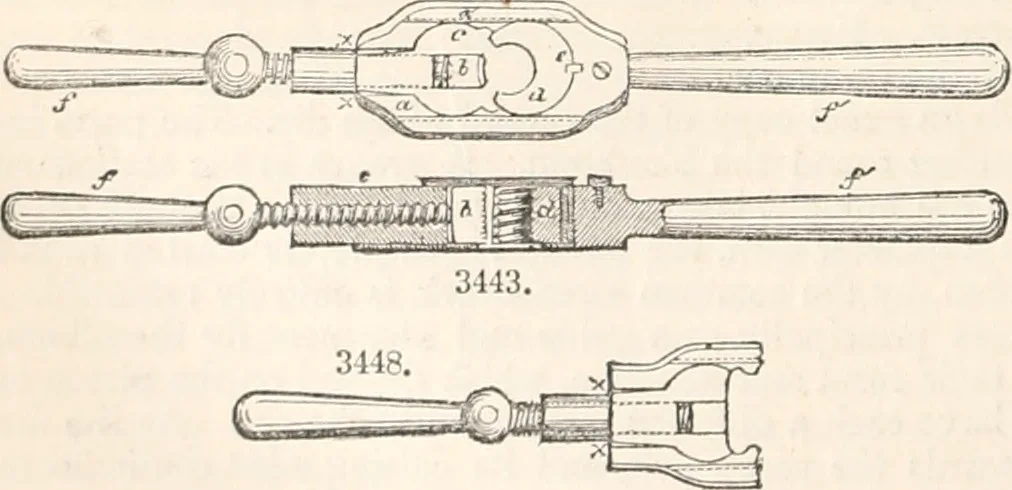

handle or screw / wdll require to be advanced a little, and then the stock is ready towork in the opposite direction. It is evident that the moment the handles// are pulled by the work-man, the die will bite on that side which is moved deeper by the pull, and recede out of cut on theopposite side;… … 3447. 3440. Fig 3 III is an end view of the stock; Fig. 3415 a ground plan and an end view of the cutting die-holder, and Fig. 3 1 16 the lid of the stock fitting the bevel or half A grooves of the same; Fig. 3447 isa plan and section of the guide-die d, and Fig. 344S shows a mode of regulating the…
