The apprentice, or First book for mechanics, machinists, and engineers (1860)
Byrne, Oliver · New York, P. J. Cozans · leaf 132

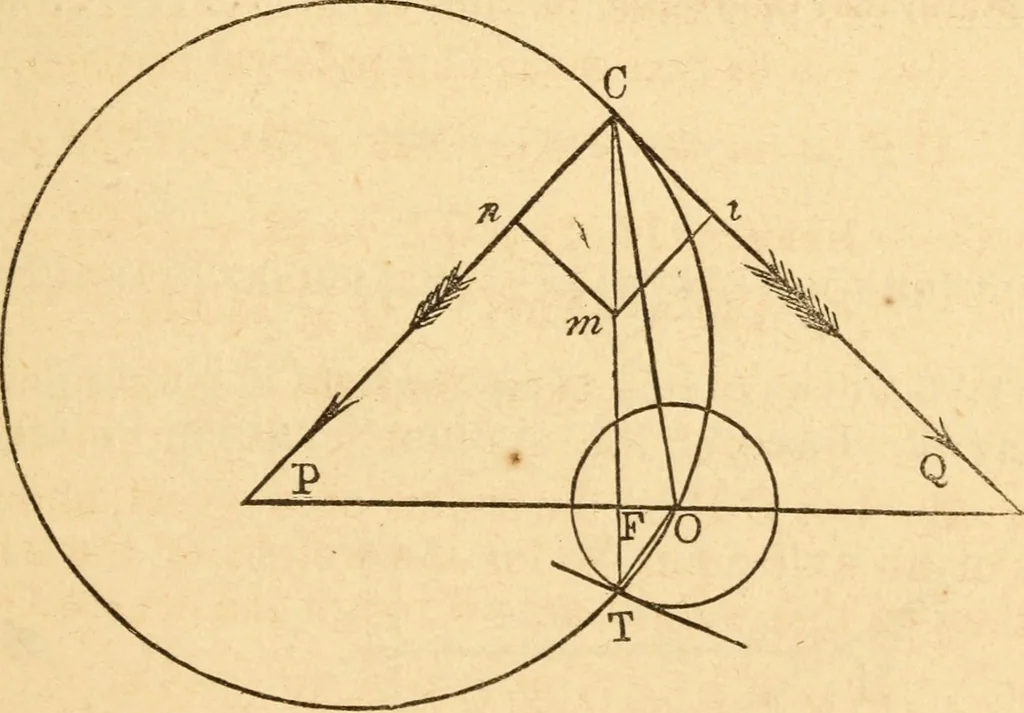

— sin. 21° X 2 = .716 ; p F z= 20 — .716 = 19.284 ; 0 F = 4.716 ; P = 100 ; W= 80 ; .•. 100 X 19.284 = Q X 4.716 + 80 X .716 .•. Q = 396.7 lbs. Ques, 41. Let the pressures P and Q be inclined to tlielever, then produce them till they intersect at C, and jointhe points C and 0 ; now the resultant of… … Let this circle intersect the circumference of the axis atthe point T, join T and C ; then on the line C P take offa space 0 n, equal to the units in the pressure P, and con-struct the parallelogram of pressures C n m t, then theunits in C ^ will give the pressure of Q, when the motion isupon the…
Mechanics, Applied
