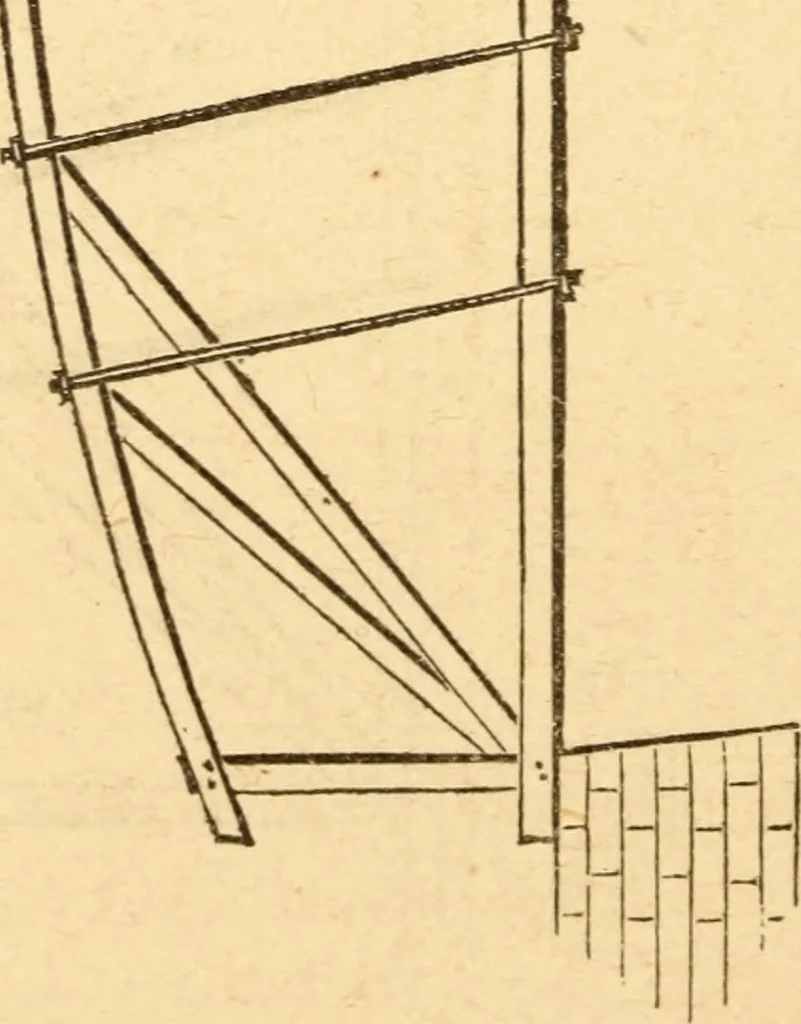

the upper chord is arched, as in Fig. 6 J, a sufficient weightwill cause tlie braces D, D, to describe an arc upwards, re-presented by c d. Pig. 6 b. When tlic cliord c e becomes PRACTICAL MECHANICS. 167 straight, the arc will then be described downwards, asshown in Fig. & a. As an illustration…
