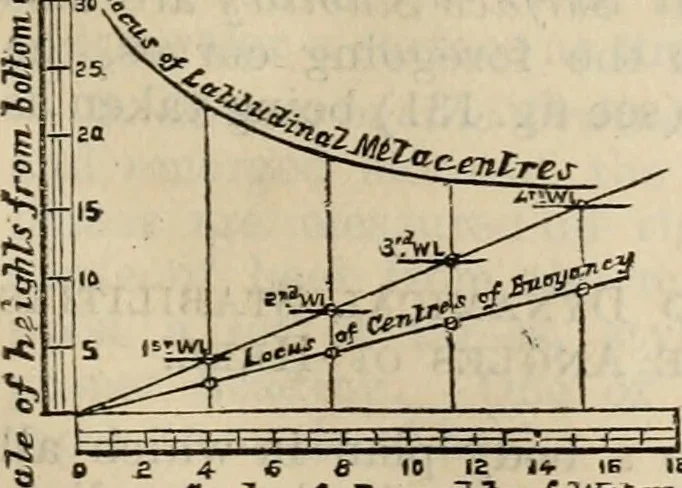

Fig. 132. a vessel has at any draught ^ of water parallel to her con- ^ ^ structed load draught. Method of Construction.—Calculate the height of theships metacentre from theunder side of keel for severalsuccessive draughts of waterparallel to her constructedload draught; set those heightsoff as… … 10 12 J4- Scale, ej .DrawgHtsefyrorCer 166 CURVES OF STABILITY. The Curve of Statical StaMlity is a ciirve used to determinethe exact statical stability of a vessel at any given angle of heel. Fig. 133.curve of statical stabilitt of ax iro>clad with high freeboard.
