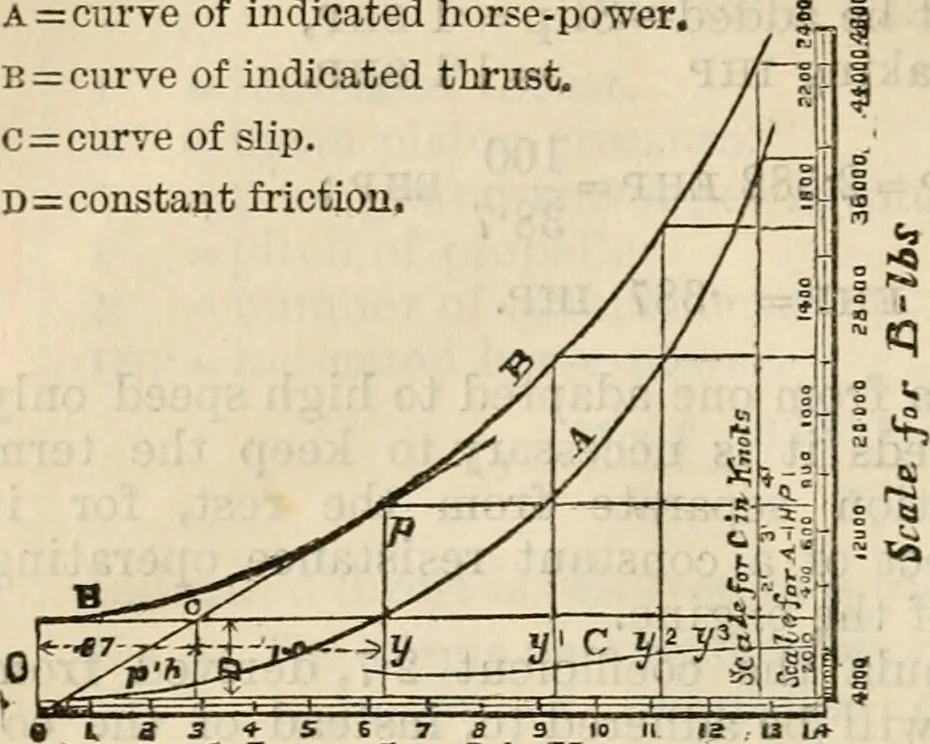

resent toscale the various speeds at which the thrust was taken, a curvebent through the ends of the ordinates will form part of a thrustcurve. Let^^ be the lowest point found for the curve ; at the pointp draw the tangent pj); draw the vertical at h so as to cut thespace oy into segments, making… … ^aHer ofj^peed.inKnalrS^ the vertical hcuts the tangent jjj?:the vertical height D be-tween the parallel lineand the base will repre-sent the constant frictionof the engine, and itwill also be the heightof the vertex of the thrustcurve at the origin of thespeed scale, which canthus be completed…
