Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus (1899)

Harrison, Joseph, Baxandall, George Albert · London Macmillan · leaf 186

An illustration from Practical plane and solid geometry for advanced students, including graphic statics, adapted to the requirements of the South Kensington syllabus, 1899, leaf 186

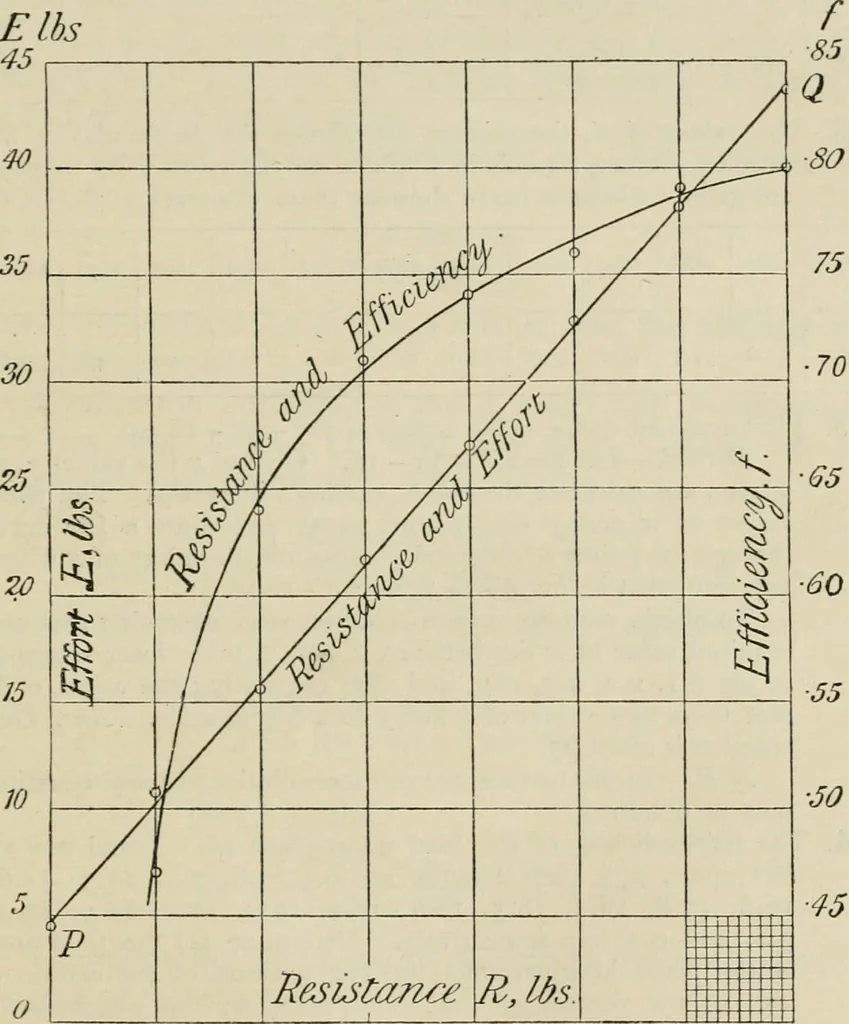

ve is shown in the samefigure. The points on it are plotted, and a fair curvedrawn so as to lie evenly amongst them, so far as can bejudged by sight. This curve may be used to correcterrors of observation. The two curves may be said to be set out on a resistancebase; the horizontal scale of… … O ZQ 40 60 80 100 120R 140 H>S. 155 ]/2 PRACTICAL PLANE GEOMETRY THAT. 158. Examples on Plotting. 1. Plot the following values of /, the pressure in pounds persquare inch, and t the temperature Fahrenheit, of dry saturatedsteam ; join the points by a fair curve, and read off the valueof/ when t…
