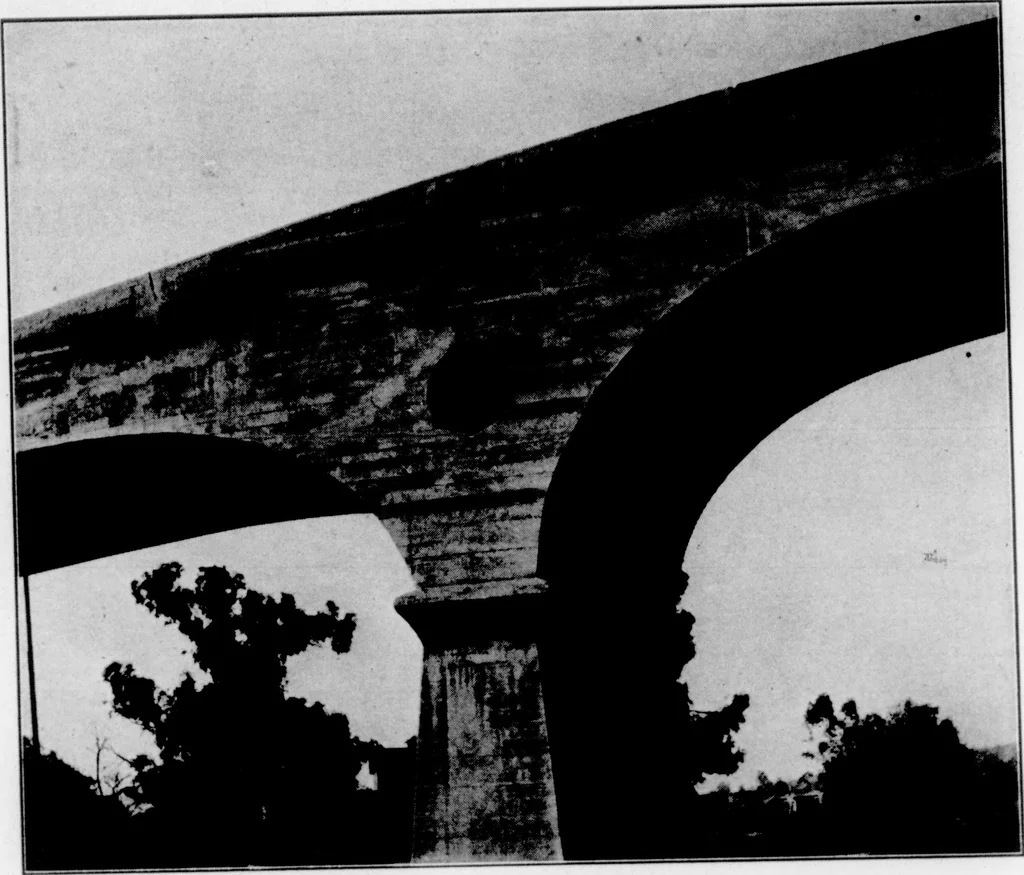

under a heavy load to set up stresses in the adjacentarch as well as in the piers. The arch theory, as usually applied, has fortwo of its assumptions an invariable span and a fixed direction at the spring-ing In the design there is no sudden transformation from arch to pier, butthere is a sudden… … North Face East End of Bin Arch. Krinforccd Concrete Bridge. South Pasadena Shoiitng Cract on the htiaht The lesson from the omission of the extrados reinforcement of the archand the partial failure may well be borne in mind in the design of beams fixedaUhe ends and also continuous beams where…
