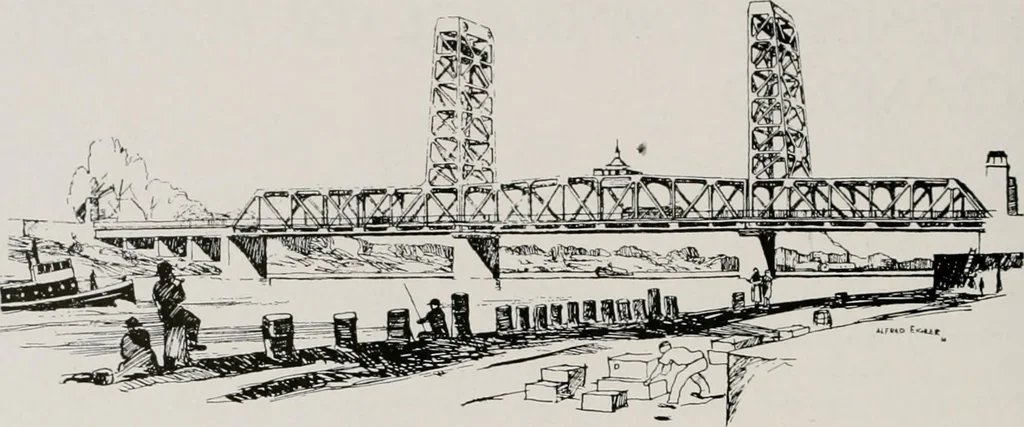

RTY-FOUR A combination railroad and highwaybridge of the vertical type will be construct-ed. The accompanying sketch shows atypical cross section. The clear width be-tween curbs will be 52 feet with the railwaytracks in the center, vehicular traffic being the interior lanes 9 feet and 6 inches.… … PRELIMINARY ARCHITECTS DRAWING OF LIFT TYPE BRIDGE. OVERSACRAMENTO RIVER AT M STREET, SACRAMENTO. CALIFORNIA protected by curbs which allow 13 feet for factory structure can be secured by build-railway traffic. Two lanes of highway ing entirely new piers at new locations,traffic in each direction…
