San Francisco : Architect and Engineer, Inc · leaf 338

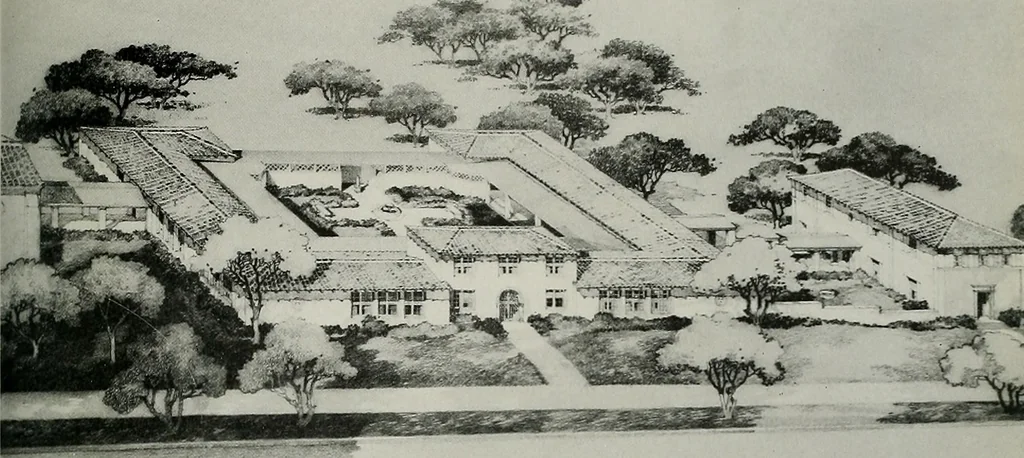

&SStX . \ >>■■ 22 ARCHITECT AND ENGINEER SCHOOL AND CONVENT FOR PARISH OF SAINT PAUL … designed as fully continuous elastic arches withpartial restraint at the footings and with tierods in the floor slab to eliminate any tendencyof the footings to slide. The tie rods weredesigned for a low unit stress and were pro-vided with turnbuckles for pre-stressing beforethe shores were removed…
