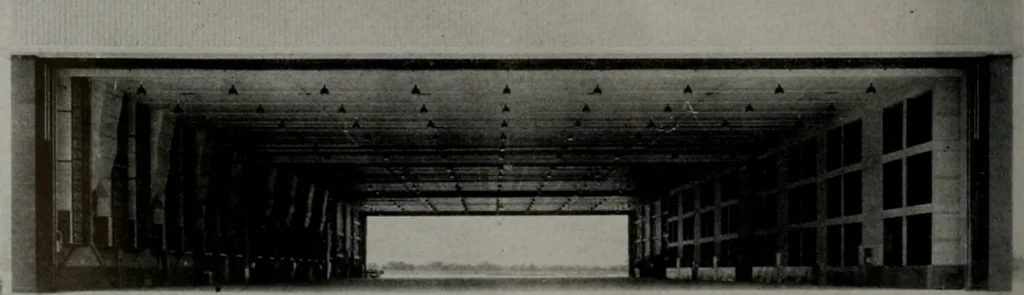

The filter panels through which the washed, warmed and filtered air entersare at the right. The exhaust units are at the left. … View through the enclosure, with end doors rolled up to permit entrance of bombers. The air filtersthrough which the air passes the enclosure are at the left; the exhaust units at the right. ARCHITECT AND ENGINEER provide an evenly distributed flow from side to side,■from floor to ceiling. The…
