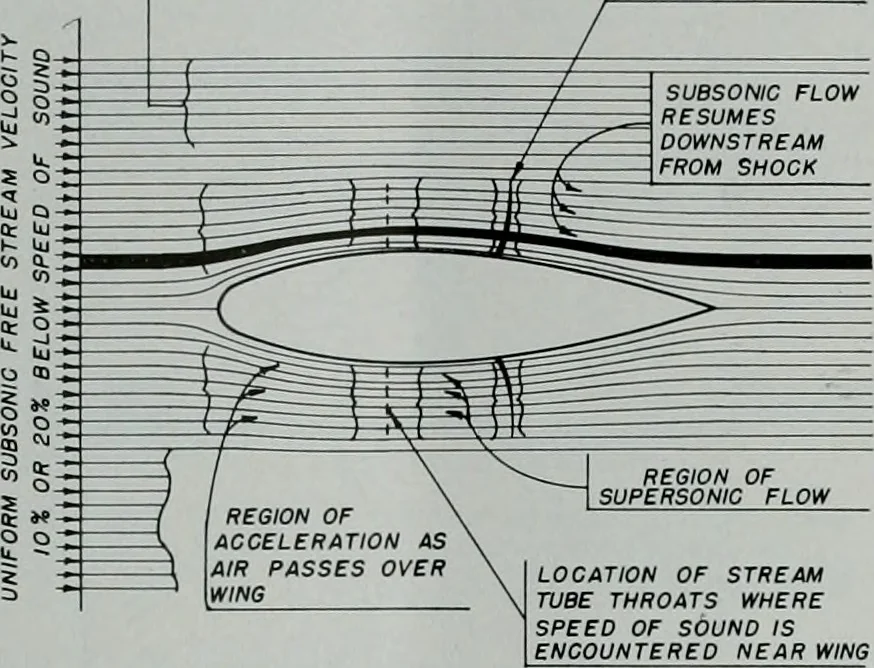

l sec-tion of a wing with streamlines flowing around it.It should be noted that the streamlines are imagi-nary filaments indicating the direction of resultantflow at all points in the fluid. No flow of fluid occursacross a streamline, and adjacent streamlines formboundaries for imaginary tubes,… … LOCATION OF STREAMTUBE THROATS WHERESPEED OF SOUND ISENCOUNTERED NEAR WING FLOW OVER WING AT HIGH SUBSONIC SPEED SHOWING LOCAL REGION OF SUPERSONIC FLOW AND FORMATION OF NORMAL SHOCK which the mass flow is uniform. If a particle of dustshould be located on a certain streamline beforethe air passes…
