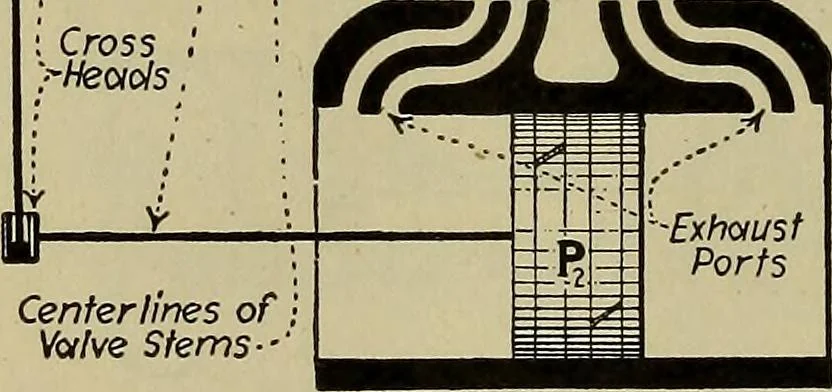

ldings. 60 STEAM POWER PLANT AUXILIARIES [Div. 2 Explanation.—A duplex pump (Fig. 63) is presumed to have beencorrectly adjusted for running. The steam-pistons, Pi and P2, (Fig.71) are at mid-stroke. Likewise, the slide-valves, Vi and F2, are at mid-travel. Piston P2 actuates valve Vi through the… … Centerlines ofVotive Stems ■■ Fig. 71.—Pistons And Valves In Mid-Position.
