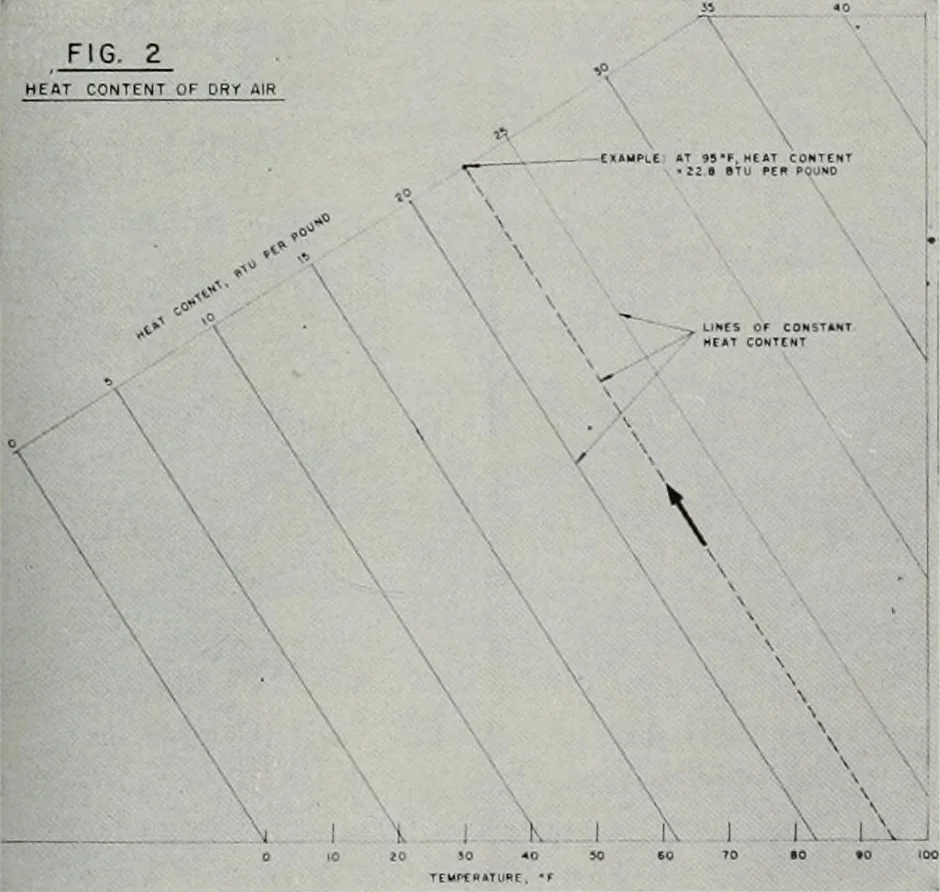

content of 12 Btu perpound, at 95° F. a heat content of 22.8 Btu perpound, etc. This relationship may be tabulated or it may beshown graphically in a variety of ways. For ex-ample, a conventionaL chart is shown in Fig. 1.The procedure used with this type of graph is toenter the chart at the… … The type of graphical plot used in air condition-ing is shown in Fig. 2. Here the procedure is toenter at the temperature under consideration andfollow an inclined line of constant heat content tothe inclined heat content scale. The desirability ofsuch a representation is not apparent when dryair…
