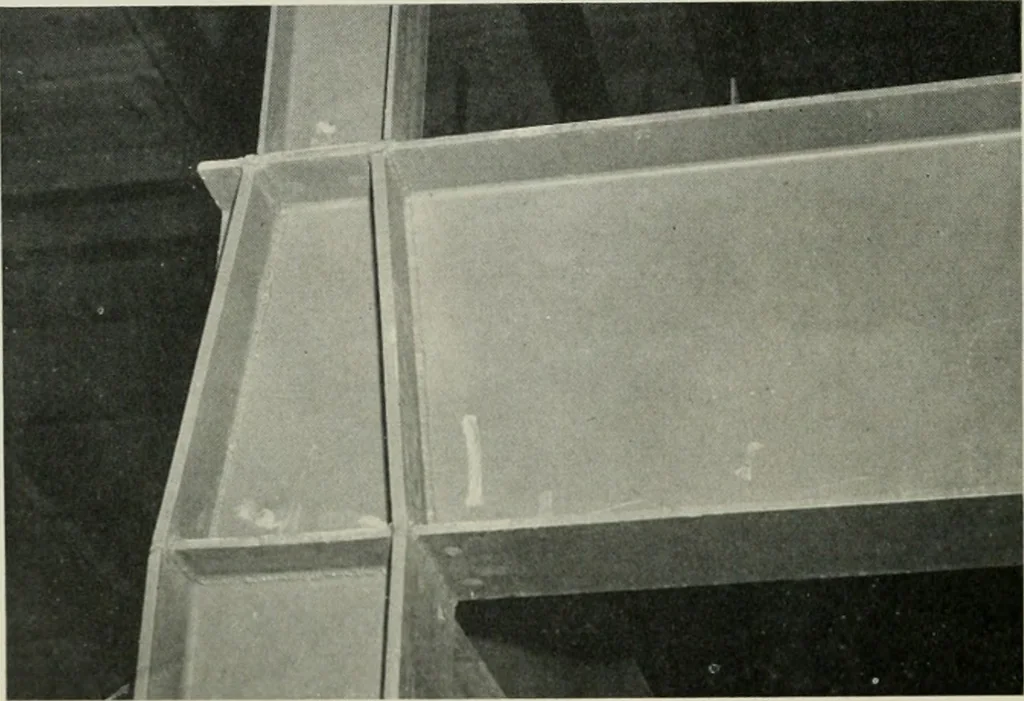

BEAM TO GIRDERCONNECTION Showing how shear clipswere welded to beam flanqeand to girder to obtaingreater simplicity inerection. … Steel girder iswelded to supportingsteel colHmn withextension of columnto form roof support. COMPLETED STRUCTURAL FRAME (Duain Jay. Photos I
